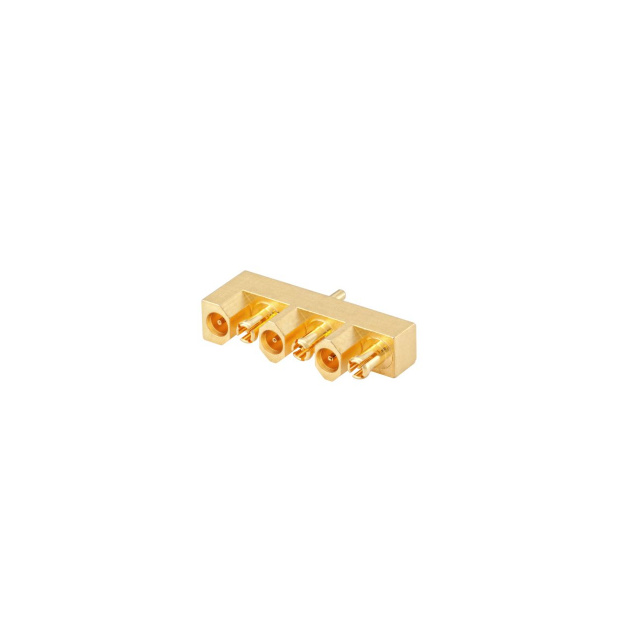

23C12G-40ML5

Active

Rosenberger

MINI COAX MULTIPORT 6 CHANNEL ST

Search across all available documentation for this part.

Active

Rosenberger

MINI COAX MULTIPORT 6 CHANNEL ST

Technical Specifications

Parameters and characteristics for this part

Specification	23C12G-40ML5

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Miniature Coaxial
Connector Type	Jack, Female Socket (3), Plug, Male Pin (3)
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	20 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Housing Color	Center Contact Plating	Connector Type	Mounting Type	Frequency - Max [Max]	Dielectric Material	Body Finish	Voltage Rating	Mating Cycles	Body Material	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Fastening Type	Center Contact Material	Shield Termination	Contact Termination	Connector Style
Rosenberger 23C12G-40ML5	Gold	Gold	Jack Female Socket (3) Plug Male Pin (3)	Surface Mount	20 GHz	Polytetrafluoroethylene (PTFE)	Gold	500 V	500	Beryllium Copper Brass	6	125 °C	-40 °C	50 Ohms	Snap-On	Beryllium Copper	Solder	Solder	Miniature Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 98.04

General part information

Miniature Coaxial Connector Jack, Female Socket (3); Plug, Male Pin (3) 50 Ohms Surface Mount Solder
