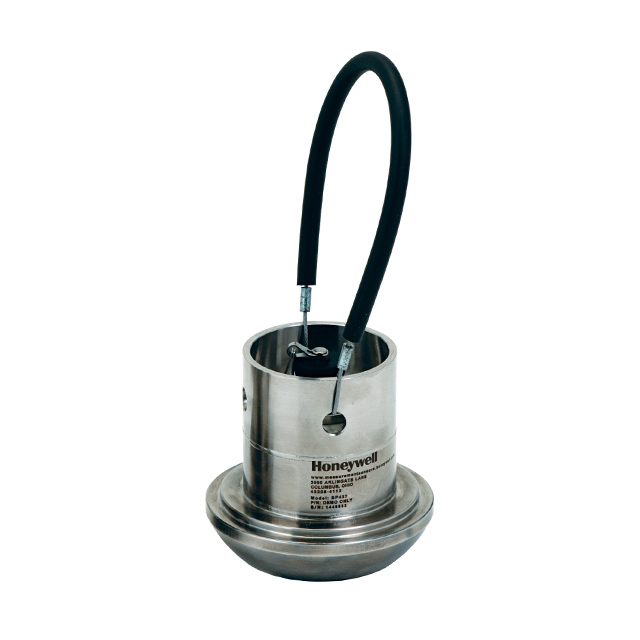

060-P459-02

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions T&M

HAMMER UNION PRESSURE SENSORS

Technical Specifications

Parameters and characteristics commom to parts in this series

HAMMER UNION PRESSURE SENSORS

Part	Termination Style	Operating Pressure [x]	Operating Pressure [x]	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Output [Max]	Output [Min]	Output Type	Features	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size [custom]	Port Size [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Port Style	Operating Pressure	Operating Pressure
Honeywell Sensing and Productivity Solutions T&M 060-P459-04	Connector	15000 PSI	103421.36 kPa	125 °C	-40 °C	Vented Gauge	20 mA	4 mA	Analog Current	Temperature Compensated	Industrial Automation	9 V	28 V	51 mm	2 "	155132.04 kPa	22500 PSI	0.2 %	Weco® 1502 Hammer Union
Honeywell Sensing and Productivity Solutions T&M 060-P459-02	Connector	6000 PSI	41368.54 kPa	125 °C	-40 °C	Vented Gauge	20 mA	4 mA	Analog Current	Temperature Compensated	Industrial Automation	9 V	28 V	51 mm	2 "	62052.82 kPa	9000 PSI	0.2 %	Weco® 1502 Hammer Union
Honeywell Sensing and Productivity Solutions T&M 060-P459-03	Connector	10000 PSI	68947.57 kPa	125 °C	-40 °C	Vented Gauge	20 mA	4 mA	Analog Current	Temperature Compensated	Industrial Automation	9 V	28 V	51 mm	2 "	103421.36 kPa	15000 PSI	0.2 %	Weco® 1502 Hammer Union
Honeywell Sensing and Productivity Solutions T&M 060-P459-01	Connector			125 °C	-40 °C	Vented Gauge	20 mA	4 mA	Analog Current	Temperature Compensated	Industrial Automation	9 V	28 V	51 mm	2 "	51710.68 kPa	7500 PSI	0.2 %	Weco® 1502 Hammer Union	34473.79 kPa	5000 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HAMMER UNION PRESSURE SENSORS
