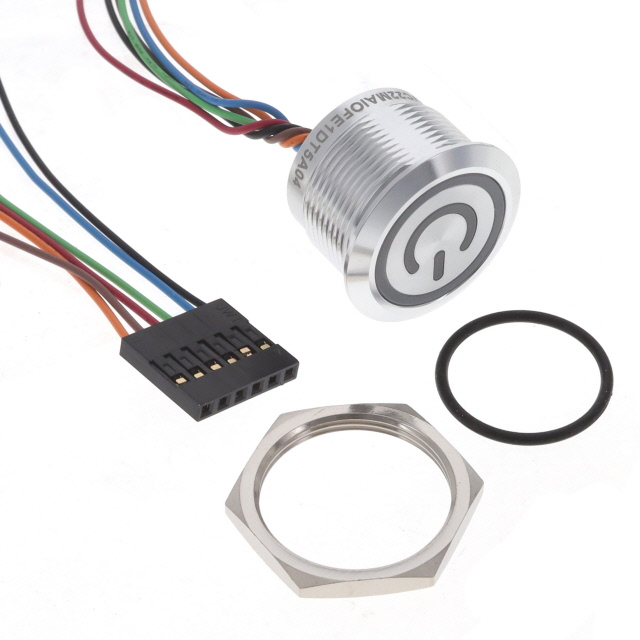

AVC22MAIOFE1DT5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A

Technical Specifications

Parameters and characteristics for this part

Specification	AVC22MAIOFE1DT5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	Off-Mom
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Mechanical Life	Electrical Life	Switch Function	Illumination Type, Color	Actuator Marking	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - DC	Type	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Ingress Protection	Mounting Type
TE Connectivity Raychem Cable Protection AVC22MAIOFE1DT5A04	50000000 Cycles	50000000 Cycles	Off-Mom	Blue Green LED Red	No Marking	22.2 mm	Button Flush Round	24 V	Anti-Vandal Capacitive Illuminated	Silver	SPST-NO	1 A	IP68 - Dust Tight Waterproof	Panel Mount Front
TE Connectivity Raychem Cable Protection AVC22MS04FE1DT5A04	50000000 Cycles	50000000 Cycles	Off-Mom	Blue Green LED Red	No Marking	22.2 mm	Button Flush Round	24 V	Anti-Vandal Capacitive Illuminated	Silver	SPST-NO	1 A	IP68 - Dust Tight Waterproof	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
