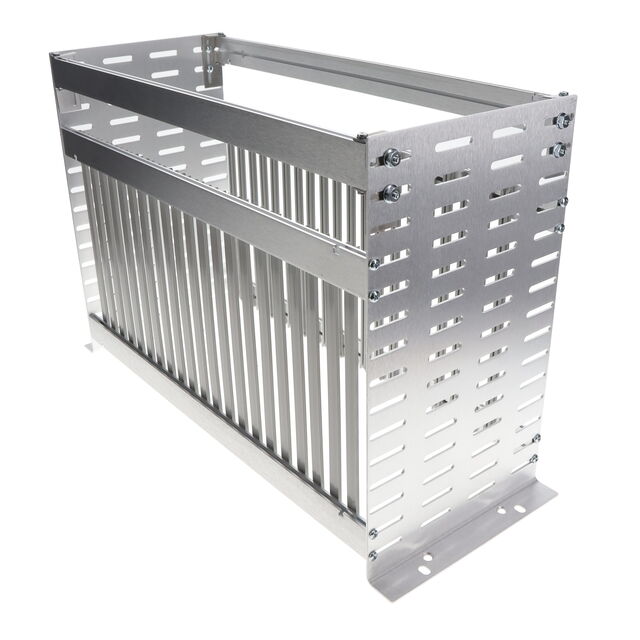

CCA15S/90

Active

Vector Electronics

CARD RACK ALUM 12X19 SNAP-IN

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ALUM 12X19 SNAP-IN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CCA15S/90	CCA15S Series

Card Size Range [Max] [z]	158.75 mm	158.75 mm
Card Size Range [Max] [z]	6.25 in	6.25 in
Card Size Range [Min] [z]	4.25 in	4.25 in
Card Size Range [Min] [z]	107.95 mm	107.95 mm
Card Size Range [x]	9.6 in	9.6 in
Card Size Range [x]	243.84 mm	243.84 mm
Guide Method	Card Guide	Card Guide
Height [z]	7 "	7 "
Height [z]	177.8 mm	177.8 mm
Material	Aluminum	Aluminum
Size / Dimension [x]	12 in	12 in
Size / Dimension [x]	304.8 mm	304.8 mm
Size / Dimension [y]	482.6 mm	482.6 mm
Size / Dimension [y]	19 in	19 in
Type	Assembled Subracks with Card Guides	Assembled Subracks with Card Guides

CARD CAGE ASSY, 4U X 8.2"W,SNAP-IN GUIDE

Part	Type	Height [z]	Height [z]	Material	Guide Method	Card Size Range [x]	Card Size Range [Max] [z]	Card Size Range [Max] [z]	Card Size Range [x]	Card Size Range [Min] [z]	Card Size Range [Min] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Vector Electronics CCA15S-H/90	Assembled Subracks with Card Guides	7 "	177.8 mm	Aluminum	Card Guide	9.6 in	158.75 mm	6.25 in	243.84 mm	4.25 in	107.95 mm	12 in	304.8 mm	482.6 mm	19 in
Vector Electronics CCA15S/90	Assembled Subracks with Card Guides	7 "	177.8 mm	Aluminum	Card Guide	9.6 in	158.75 mm	6.25 in	243.84 mm	4.25 in	107.95 mm	12 in	304.8 mm	482.6 mm	19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 4U = 7.000" (177.80mm)
