10-101971-183

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ18 OLIVE

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN CABLE CLAMP SZ18 OLIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10-101971-183	101971 Series

Cable Exit	180 °	180 °
Cable Opening	-	7.67 - 15.62 mm
Cable Opening	-	0.302 - 0.615 in
Cable Opening [diameter]	0.74 in	0.74 in
Cable Opening [diameter]	18.8 mm	18.8 mm
Color	Olive	Olive
Diameter - Outside	-	26.59 mm
Diameter - Outside [diameter]	29.59 mm	13.97 - 32.79 mm
Diameter - Outside [diameter]	1.165 in	0.55 - 1.291 "
Features	Clamp Screws, Strain Relief	Clamp Screws, Strain Relief
For Use With/Related Products	Class E Connectors	Class E Connectors
Ingress Protection	Environment Resistant	Environment Resistant
Plating	Cadmium	Cadmium
Shell Size - Insert	18	8 - 20
Type	Cable Clamp	Cable Clamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN CABLE CLAMP SZ16 OLIVE

Part	For Use With/Related Products	Type	Features	Cable Opening [custom]	Cable Opening [custom]	Color	Ingress Protection	Plating	Diameter - Outside	Diameter - Outside [diameter]	Shell Size - Insert	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Diameter - Outside [diameter]
Amphenol Industrial Operations 10-101971-163	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief	15.62 mm	0.615 in	Olive	Environment Resistant	Cadmium	26.59 mm	1.047 "	16	180 °
Amphenol Industrial Operations 10-101971-203	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief			Olive	Environment Resistant	Cadmium		1.291 "	20	180 °	0.74 in	18.8 mm	32.79 mm
Amphenol Industrial Operations 10-101971-83	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief			Olive	Environment Resistant	Cadmium		0.55 in	8	180 °			13.97 mm
Amphenol Industrial Operations 10-101971-123	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief	10.87 mm	0.428 in	Olive	Environment Resistant	Cadmium		0.803 in	12	180 °			20.4 mm
Amphenol Industrial Operations 10-101971-143	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief	14.02 mm	0.552 in	Olive	Environment Resistant	Cadmium			14	180 °
Amphenol Industrial Operations 10-101971-183	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief			Olive	Environment Resistant	Cadmium		1.165 in	18	180 °	0.74 in	18.8 mm	29.59 mm
Amphenol Industrial Operations 10-101971-103	Class E Connectors	Cable Clamp	Clamp Screws, Strain Relief	7.67 mm	0.302 in	Olive	Environment Resistant	Cadmium		0.675 "	10	180 °			17.15 mm

General part information

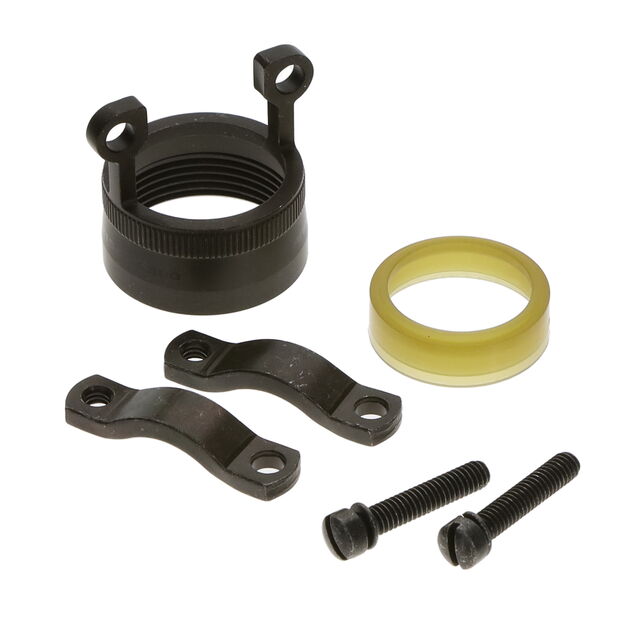

Olive Connector Cable Clamp 18

Technical documentation and resources
