GR3068A

Active

Essentra Access Solutions

GROMMET, OPEN, 17.5 MM, 33.3 MM, SBR (STYRENE BUTADIENE) 60 DUROMETER, 25.4 MM, 1.6 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, OPEN, 17.5 MM, 33.3 MM, SBR (STYRENE BUTADIENE) 60 DUROMETER, 25.4 MM, 1.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	GR3068A

Bushing, Grommet Type	Grommet
Color	Black
Diameter - Inside [diameter]	0.688 in
Diameter - Inside [diameter]	17.48 mm
For Use With/Related Products	Wires, Cable
Material	60 Durometer
Material	Styrene-Butadiene Rubber (SBR)
Panel Cutout Dimensions [diameter]	25.4 mm
Panel Cutout Dimensions [diameter]	1 in
Panel Thickness	0.063 in
Panel Thickness	1.6 mm

Part	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Material	For Use With/Related Products	Panel Thickness	Panel Thickness	Color	Bushing, Grommet Type
Essentra Access Solutions GR3068A	25.4 mm	1 in	0.688 in	17.48 mm	60 Durometer	Styrene-Butadiene Rubber (SBR)	Cable Wires	0.063 in	1.6 mm	Black	Grommet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

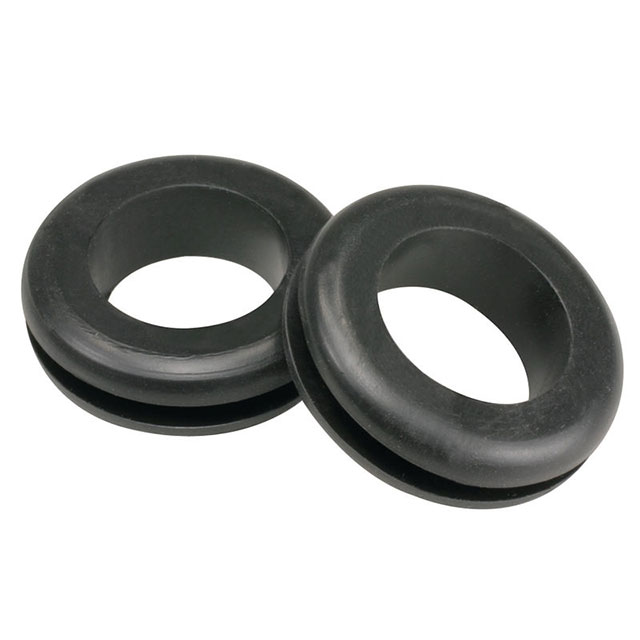

Circular - 1.000" (25.40mm) Grommet 0.688" (17.48mm) Black
