Specification	EVQ-P0S02Q

Actuator Height off PCB (Vertical)	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.02 A
Features	Grounding Pin
Illumination	Non-Illuminated
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	0.1 kgf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	6.5 mm
Outline Width	6 mm
Switch Function	Off-Mom
Switch Travel	0.3 mm
Termination Style	J Lead

EVQ-P0 Series

Part	Circuit	Actuator Height off PCB (Vertical)	Contact Rating (Current)	Actuator Type	Mounting Type	Actuator Orientation	Operating Force	Termination Style	Switch Function	Illumination	Outline Length	Outline Width	Operating Temperature (Max)	Operating Temperature (Min)	Mechanical Life (Cycles)	Switch Travel	Features
Panasonic Electronic Components EVQ-P0E07K	SPST-NO	7.45 mm	0.05 A	Standard	Through Hole	Top Actuated	75 gf	PC Pin	Off-Mom	Non-Illuminated	6.2 mm	6.2 mm	70 °C	-20 °C	5000000 Cycles	0.5 mm
Panasonic Electronic Components EVQ-P0S02Q	SPST-NO	2.5 mm	0.02 A	Standard	Surface Mount	Top Actuated	0.1 kgf	J Lead	Off-Mom	Non-Illuminated	6.5 mm	6 mm	85 °C	-40 °C	1000000 Cycles	0.3 mm	Grounding Pin
Panasonic Electronic Components EVQ-P0Q02Q	SPST-NO	2.5 mm	0.02 A	Standard	Surface Mount	Top Actuated	0.1 kgf	J Lead	Off-Mom	Non-Illuminated	6.5 mm	6 mm	85 °C	-40 °C	1000000 Cycles	0.3 mm

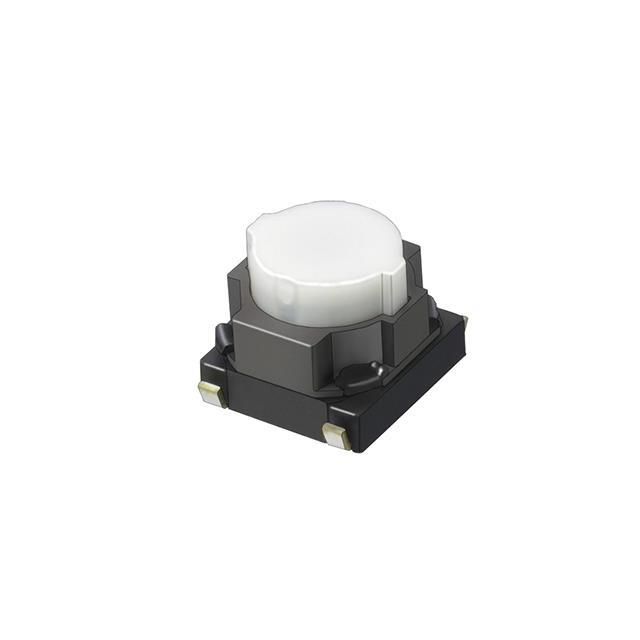

Panasonic Electronic Components EVQ-P0405M	SPST-NO	5 mm	0.05 A	Round Button	Surface Mount	Top Actuated	306 gf	J Lead	Off-Mom	Non-Illuminated	6.1 mm	6 mm	85 °C	-40 °C	100000 Cycles	1.3 mm
Panasonic Electronic Components EVQ-P0P02B	SPST-NO	2.5 mm	0.02 A	Standard	Surface Mount	Top Actuated	60 gf	J Lead	Off-Mom	Non-Illuminated	6.5 mm	6 mm	85 °C	-40 °C	2000000 Cycles	0.3 mm	Grounding Pin
Panasonic Electronic Components EVQ-P0D07K	SPST-NO	7.45 mm	0.05 A	Standard	Through Hole	Top Actuated	130 gf	PC Pin	Off-Mom	Non-Illuminated	6.2 mm	6.2 mm	70 °C	-20 °C	1000000 Cycles	0.5 mm
