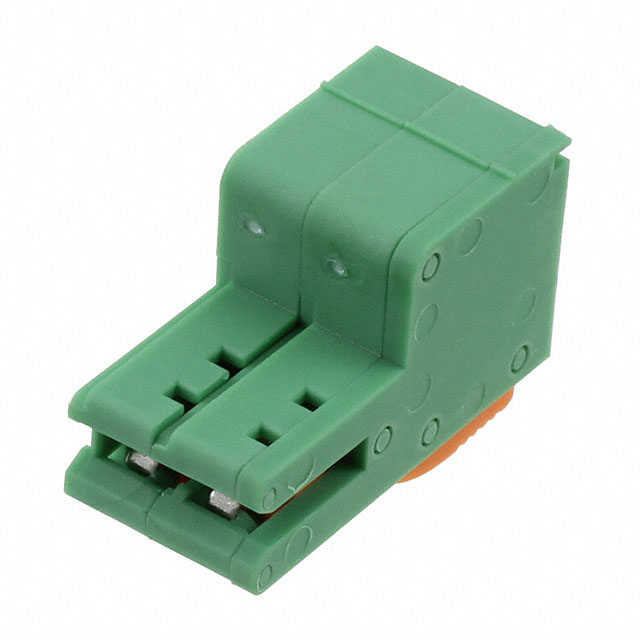

PLUGGABLE TERMINAL BLOCKS ZEC 1.5/ 2-ST-5.0 C2 R1,2

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS ZEC 1.5/ 2-ST-5.0 C2 R1,2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1883048	ZEC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	10 A	10 A
Current - UL	10 A	10 A
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.689 in	0.689 in
Insulation Height	17.5 mm	17.5 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 6
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 6
Termination Style	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp
Type	Plug, Card Edge	Plug, Card Edge
Voltage - IEC	630 V	630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	26 AWG	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	14 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	1.5 mm˛
Wire Gauge or Range - mm² [Max]	1.5 mm²	1.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 mm

Pluggable Terminal Blocks ZEC 1.5/ 6-ST-5.0 C2 R1.6

Part	Mounting Type	Color	Termination Style	Material Flammability Rating	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Voltage - UL	Housing Material	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Type	Voltage - IEC	Contact Mating Finish	Number of Positions	Wire Strip Length	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Positions Per Level	Current - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1883048	Free Hanging (In-Line)	Green	Screwless - Spring Cage, Tension Clamp	UL94 V-0	0.689 in	17.5 mm	5 mm	0.197 in	300 V	Polyamide (PA), Nylon	0.2 mm²	1.5 mm²	10 A	Plug, Card Edge	630 V	Tin	2	7 mm	26 AWG	14 AWG	1	2	10 A
Phoenix Contact 1883080	Free Hanging (In-Line)	Green	Screwless - Spring Cage, Tension Clamp	UL94 V-0	0.689 in	17.5 mm	5 mm	0.197 in	300 V	Polyamide (PA), Nylon			10 A	Plug, Card Edge	630 V	Tin	6	7 mm	26 AWG	14 AWG	1	6	10 A	0.2 mm˛	1.5 mm˛
