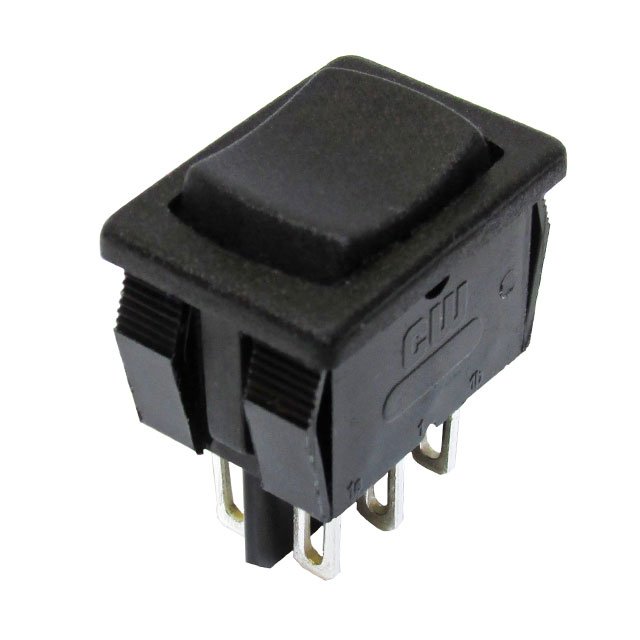

GRS-4023A-0012

Active

CW Industries

SWITCH ROCKER DPDT 13A 125V

Deep-Dive with AI

Search across all available documentation for this part.

GRS-4023A-0012

Active

CW Industries

SWITCH ROCKER DPDT 13A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4023A-0012

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	13 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V

GRS-4023 Series

Part	Color - Actuator/Cap	Electrical Life	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Circuit	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Mechanical Life	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Termination Style
CW Industries GRS-4023C-0001	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	Mom-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	8 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023C-0017	Black	25000 Steps		Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	Mom-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023A-0009	Red	25000 Steps		Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	On-Off-On	12.9 mm	Rectangular	19.2 mm	100000 Cycles	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023C-0000	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	Mom-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023B-0000	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	On-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023A-0012	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	On-Off-On	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.110" (2.8mm)
CW Industries GRS-4023C-0018	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	Bump	DPDT	Mom-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023A-1300	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	On-Off-On	12.9 mm	Rectangular	19.2 mm	100000 Cycles	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023B-0003	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	I O II	DPDT	On-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	13 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)
CW Industries GRS-4023B-0001	Black	25000 Steps	Terminal Barriers	Panel Mount Snap-In	-20 C	105 ░C	No Marking	DPDT	On-Off-Mom	12.9 mm	Rectangular	19.2 mm	25000 Steps	8 A	125 V	Concave (Curved)	Quick Connect - 0.187" (4.7mm)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GRS-4023 Series

Rocker Switch DPDT 13A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
