22HSC0120

Active

Essentra Access Solutions

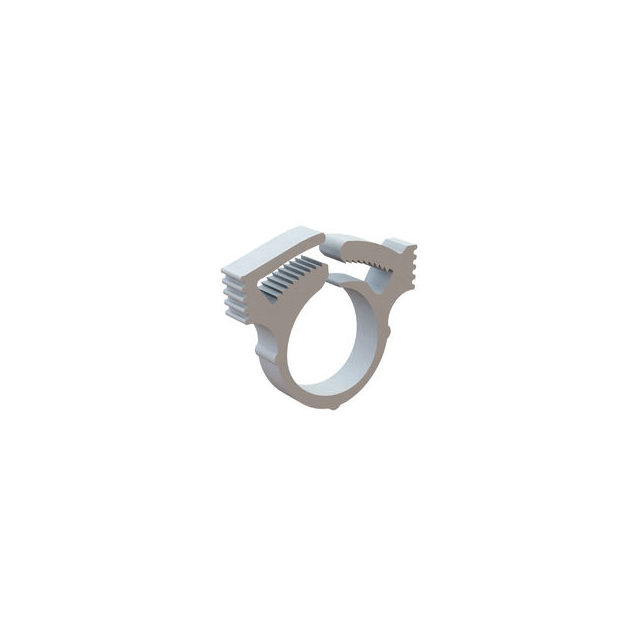

CBL CLAMP HOSE WHITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

22HSC0120

Active

Essentra Access Solutions

CBL CLAMP HOSE WHITE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22HSC0120

Color	White
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max]	17.96 mm
Opening Size [Max]	0.707 in
Opening Size [Min]	0.616 in
Opening Size [Min]	15.65 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width [x]	5.84 mm
Width [x]	0.23 in

22HSC Series

Part	Color	Type Attributes	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Opening Size [Min]	Type	Material	Material Flammability Rating	Width	Width	Width [x]	Width [x]	Material Thickness	Material Thickness	Opening Size [Max]	Opening Size [Min]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Width [y]	Width [y]	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]	Opening Size [Min] [diameter]	Opening Size [Max] [diameter]	Opening Size [Max] [diameter]
Essentra Access Solutions 22HSC0220B	Black	Push-Fit	27.23 mm	1.072 in	22.86 mm	0.9 in	Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2	0.25 in	6.35 mm
Essentra Access Solutions 22HSC0060	White	Push-Fit	12.97 mm		11.4 mm		Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in	0.07 in	1.78 mm	0.511 in	0.449 in
Essentra Access Solutions 22HSC0120	White	Push-Fit	17.96 mm		15.65 mm		Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in	0.07 in	1.78 mm	0.707 in	0.616 in
Essentra Access Solutions 22HSC0190	White	Push-Fit					Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in	0.07 in	1.78 mm			0.989 in	21.82 mm	25.12 mm	0.859 in
Essentra Access Solutions 22HSC0010B	Black	Push-Fit	6.6 mm		5.97 mm		Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2							0.26 in	0.235 in					3.96 mm	0.156 in
Essentra Access Solutions 22HSC0080B	Black	Push-Fit					Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in											12.7 mm	0.545 in	0.5 in	13.84 mm
Essentra Access Solutions 22HSC0180B	Black	Push-Fit	22.84 mm		19.79 mm		Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in					0.899 in			0.779 in
Essentra Access Solutions 22HSC0015	White	Push-Fit					Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			3.81 mm	0.15 in	0.05 in	1.27 mm									7.8 mm	0.342 in	0.307 in		8.7 mm
Essentra Access Solutions 22HSC0190B	Black	Push-Fit					Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in					0.989 in	21.82 mm	25.12 mm	0.859 in
Essentra Access Solutions 22HSC0140	White	Push-Fit	20.35 mm		17.83 mm		Clamp Hose	Polyamide (PA66) Nylon 6/6	UL94 V-2			5.84 mm	0.23 in	0.07 in	1.78 mm			0.801 in			0.702 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.35
		25	$ 0.32
		50	$ 0.30
		100	$ 0.29
		250	$ 0.26
		500	$ 0.25
		1000	$ 0.22

Description

General part information

22HSC Series

Cable Clamp, Hose White 0.616" ~ 0.707" (15.65mm ~ 17.96mm)
