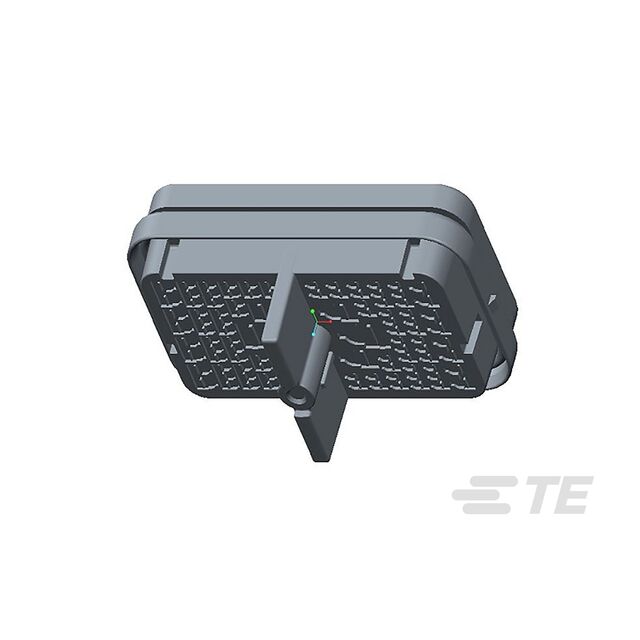

DRB12-102PAE-L018

Active

TE Connectivity Raychem Cable Protection

DRB RECP ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

DRB RECP ASM

Technical Specifications

Parameters and characteristics for this part

Specification	DRB12-102PAE-L018

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Wire Router, Reduced Wire Seals, Cap (Cover)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	102
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Color	Mounting Type	Features	Contact Termination	Number of Positions	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Number of Rows
TE Connectivity Raychem Cable Protection DRB12-102PAE-L018	Black	Free Hanging (In-Line)	Cap (Cover) Reduced Wire Seals Wire Router	Crimp	102	Polyamide (PA66) Nylon 6/6 Glass Filled	Female Socket	-55 °C	125 °C	Receptacle
TE Connectivity Raychem Cable Protection DRB12-102PANE	Black	Free Hanging (In-Line)		Crimp	102	Glass Filled Nylon Polyamide (PA)	Female Socket	-55 °C	125 °C	Receptacle	Swing Lock	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

102 Rectangular Connectors - Housings Receptacle Black
