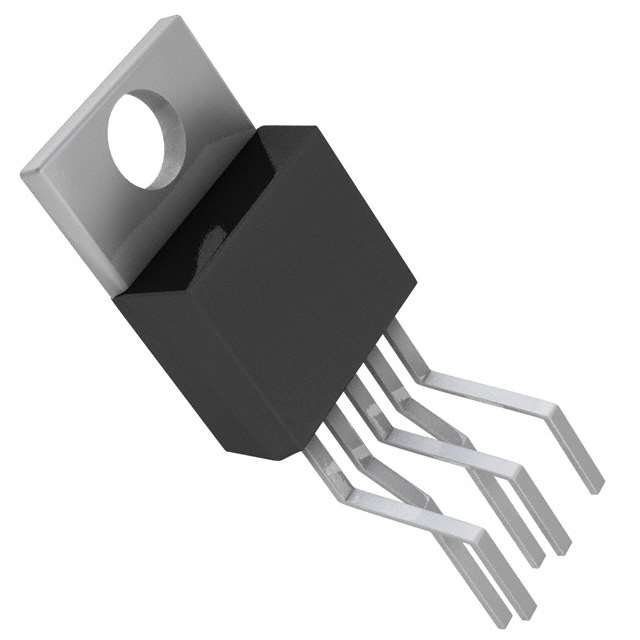

BTS442E2NKSA1

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 TO220-5

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 TO220-5

Technical Specifications

Parameters and characteristics for this part

Specification	BTS442E2NKSA1

Current - Output (Max) [Max]	17 A
Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Features	Status Flag, Auto Restart
Grade	Automotive
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	TO-220-5 Formed Leads
Qualification	AEC-Q100
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	15 mOhm
Supplier Device Package	PG-TO220-5-11
Switch Type	General Purpose
Voltage - Load [Max]	42 V
Voltage - Load [Min]	4.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Supplier Device Package	Package / Case	Qualification	Switch Type	Ratio - Input:Output [custom]	Fault Protection	Mounting Type	Grade	Current - Output (Max) [Max]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Number of Outputs	Input Type	Features	Output Configuration
Infineon Technologies BTS442E2NKSA1	PG-TO220-5-11	TO-220-5 Formed Leads	AEC-Q100	General Purpose	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Through Hole	Automotive	17 A	15 mOhm	150 °C	-40 °C	On/Off	N-Channel	42 V	4.5 V	1	Non-Inverting	Auto Restart Status Flag	High Side
Infineon Technologies BTS442E2E3062ANTMA1	PG-TO263-5-2	D2PAK (4 Leads + Tab) TO-263-5 TO-263BB	AEC-Q100	General Purpose	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Surface Mount	Automotive	17 A	15 mOhm	150 °C	-40 °C	On/Off	N-Channel	42 V	4.5 V	1	Non-Inverting	Auto Restart Status Flag	High Side
Infineon Technologies BTS442E2E3062ABUMA1	PG-TO263-5-2	D2PAK (4 Leads + Tab) TO-263-5 TO-263BB		General Purpose	1:1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	Surface Mount	Automotive	17 A	15 mOhm	150 °C	-40 °C	On/Off	N-Channel	42 V	4.5 V	1	Non-Inverting	Auto Restart Status Flag	High Side
