Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MT48LC4M16A2F4-7E:G TR | MT48LC4M16A2 Series |
|---|---|---|
| Access Time | 5.4 ns | 5.4 - 5.5 ns |
| Clock Frequency | 133 MHz | 133 - 167 MHz |
| Grade | - | Automotive |
| Memory Format | DRAM | DRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 4 M | 4 M |
| Memory Size | 64 Gbit | 64 Gbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 54-VFBGA | 54-VFBGA |
| Qualification | - | AEC-Q100 |
| Supplier Device Package | 54-VFBGA (8x8) | 54-TSOP II, 54-VFBGA (8x8) |
| Technology | SDRAM | SDRAM |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
| Write Cycle Time - Word, Page | 14 ns | 12 - 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MT48LC4M16A2 Series
SYNCHRONOUS DRAM, 4MX16, 5.5NS, CMOS, PDSO54, 0.400 INCH, PLASTIC, TSOP2-54
| Part | Memory Type | Memory Format | Mounting Type | Memory Interface | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size | Technology | Write Cycle Time - Word, Page | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Organization | Clock Frequency | Supplier Device Package | Access Time | Grade | Qualification | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Micron Technology Inc. MT48LC4M16A2TG-6:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-7E IT:J | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2TG-6:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-6:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-7E:J TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2P-6 IT:G | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-6 IT:G TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-7E AIT:J TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 143 MHz | 54-TSOP II | 5.4 ns | Automotive | AEC-Q100 | |
Micron Technology Inc. MT48LC4M16A2P-75 L:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2F4-75:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2P-75 L:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2B4-6A IT:J | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2B4-7E:J TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2P-7E IT:J TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2B4-75 IT:G TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2TG-75 IT:G TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2TG-75 L:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2P-6:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-7E:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2B4-7E:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2F4-7E:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2P-6A AIT:J TR | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.4 ns | Automotive | AEC-Q100 | |
Micron Technology Inc. MT48LC4M16A2P-7E:J | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2B4-7E:J | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-VFBGA (8x8) | 5.4 ns | 54-VFBGA | ||
Micron Technology Inc. MT48LC4M16A2TG-6 IT:G | Volatile | DRAM | Surface Mount | Parallel | 85 °C | -40 °C | 64 Gbit | SDRAM | 12 ns | 3.6 V | 3 V | 4 M | 167 MHz | 54-TSOP II | 5.5 ns | |||
Micron Technology Inc. MT48LC4M16A2P-7E:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2P-75:G | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 15 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns | |||
Micron Technology Inc. MT48LC4M16A2TG-7E:G TR | Volatile | DRAM | Surface Mount | Parallel | 70 °C | 0 °C | 64 Gbit | SDRAM | 14 ns | 3.6 V | 3 V | 4 M | 133 MHz | 54-TSOP II | 5.4 ns |
Description
General part information
MT48LC4M16A2 Series

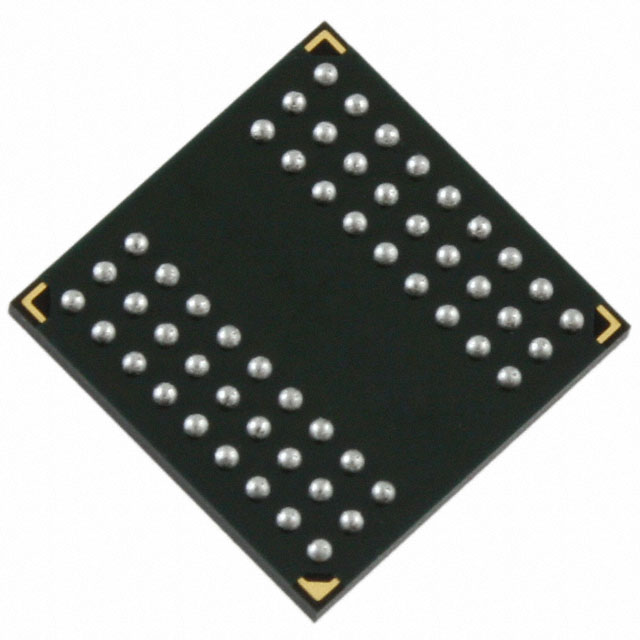

SDRAM Memory IC 64Mbit Parallel 133 MHz 5.4 ns 54-VFBGA (8x8)
