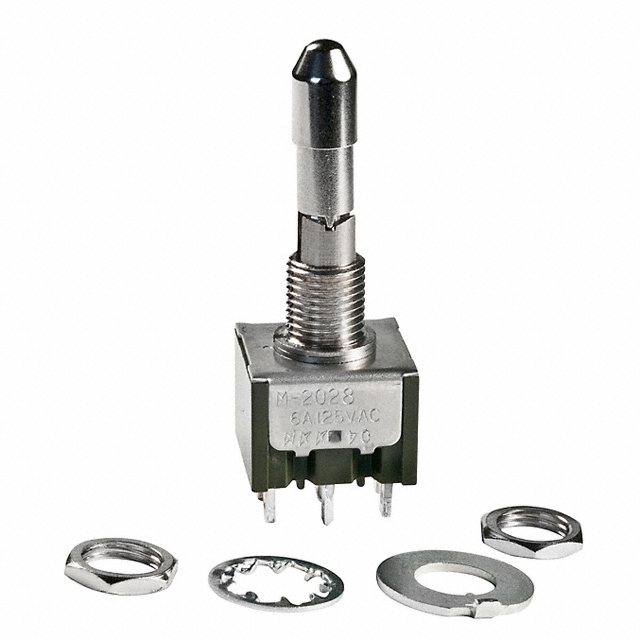

M2028LL1W01

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2028LL1W01

Actuator Length [x]	16.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Locking Lever
Bushing Thread	1/4-40
Circuit	DPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Illumination	Circuit	Features	Actuator Length [x]	Voltage Rating - DC	Ingress Protection	Electrical Life	Bushing Thread	Voltage Rating - AC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switch Function	Actuator Material	Panel Cutout Dimensions [diameter]
NKK Switches M2028LL3W01	3 A 6 A	Non-Illuminated	DPDT	Epoxy Sealed Terminals	16.5 mm	30 V	IP67 - Dust Tight Waterproof	25000 Steps	1/4-40	125 V	Locking Lever	-30 ░C	85 °C	Solder Lug	Mom-Off-Mom	Brass Chrome Plated	6.5 mm
NKK Switches M2028LL1W01	3 A 6 A	Non-Illuminated	DPDT	Epoxy Sealed Terminals	16.5 mm	30 V		25000 Steps	1/4-40	125 V	Locking Lever	-30 ░C	85 °C	Solder Lug	Mom-Off-Mom	Brass Chrome Plated	6.5 mm
NKK Switches M2028LL3W01-A	3 A 6 A	Non-Illuminated	DPDT	Black Cap	16.5 mm	30 V	IP67 - Dust Tight Waterproof	25000 Steps	1/4-40	125 V	Locking Lever	-30 ░C	85 °C	Solder Lug	Mom-Off-Mom	Brass Chrome Plated	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
