90152-AS

Obsolete

Preci-Dip

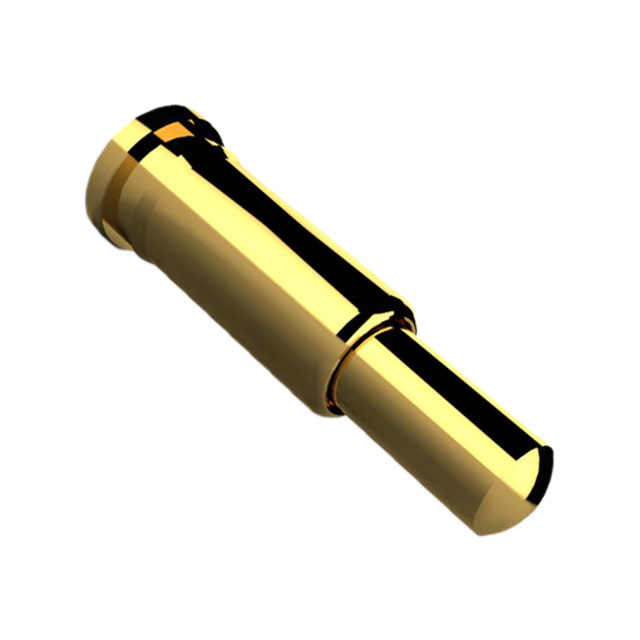

CONTACT SPRING LOADED SMD GOLD

Search across all available documentation for this part.

Obsolete

Preci-Dip

CONTACT SPRING LOADED SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	90152-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	7 mm
Maximum Working Height [Max]	0.276 in
Minimum Working Height [Min]	0.22 in
Minimum Working Height [Min]	5.6 mm
Mounting Type	Surface Mount
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	86.68 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [custom]	1.83 mm
Pad Layout Dimension [custom]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

CONTACT SPRING LOADED SMD GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Force - Initial	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Pad Layout Dimension [custom]	Pad Layout Dimension [custom]	Operating Force - Mid Compression	Current Rating (Amps)	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Type	Minimum Working Height [Min]	Minimum Working Height [Min]	Mating Cycles	Plunger Size [diameter]	Plunger Size [diameter]
Preci-Dip 90152-AS	0.51 µm	20 µin	Gold	25.49 gf	-55 °C	125 °C	Surface Mount	Brass Alloy	1.83 mm	0.072 in	86.68 gf	3 A	7 mm	0.276 in	Sleeve & Plunger (Pogo Pins)	0.22 in	5.6 mm	40000	0.042 in	1.07 mm
