Specification	ST-JL05-20P-C1-100

Contact Finish	Silver
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Termination Finish	Copper Alloy
Type	Stamped, Signal
Wire Gauge or Range - AWG (Max)	22 AWG
Wire Gauge or Range - AWG (Min)	18 AWG
Wire Gauge or Range - mm² (Maximum)	0.8 mm²
Wire Gauge or Range - mm² (Minimum)	0.3 mm²

ST-JL05 Series

Part	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Type	Termination Finish	Type	Contact Finish	Contact Size	Features	Contact Material	Contact Termination	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)
JAE Electronics ST-JL05-20P-C2-10000	0.13 mm²	0.3 mm²	Pin	Copper Alloy	Signal Stamped	Silver	20	Insulation Support	Copper Alloy	Crimp	25.5 AWG	22 AWG
JAE Electronics ST-JL05-16S-C1-3500	1.25 mm²	2 mm²	Socket	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	16 AWG	14 AWG
JAE Electronics ST-JL05-16S-C3-100	0.2 mm²	0.5 mm²	Socket	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	24 AWG	20 AWG
JAE Electronics ST-JL05-16P-C2-3500	0.5 mm²	1.25 mm²	Pin	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	20 AWG	16 AWG
JAE Electronics ST-JL05-20P-C1-100-(A534G)	0.3 mm²	0.8 mm²	Pin	Copper Alloy	Signal Stamped	Gold	20	Insulation Support	Copper Alloy	Crimp	22 AWG	18 AWG
JAE Electronics ST-JL05-20P-C1-100	0.3 mm²	0.8 mm²	Pin	Copper Alloy	Signal Stamped	Silver	20	Insulation Support	Copper Alloy	Crimp	22 AWG	18 AWG
JAE Electronics ST-JL05-16S-C1-100	1.25 mm²	2 mm²	Socket	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	16 AWG	14 AWG
JAE Electronics ST-JL05-16P-C1-3500	1.25 mm²	2 mm²	Pin	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	16 AWG	14 AWG
JAE Electronics ST-JL05-16S-C2-100	0.5 mm²	1.25 mm²	Socket	Copper Alloy	Signal Stamped	Silver	16 S	Insulation Support	Copper Alloy	Crimp	20 AWG	16 AWG
JAE Electronics ST-JL05-20P-C1-10000	0.3 mm²	0.8 mm²	Pin	Copper Alloy	Signal Stamped	Silver	20	Insulation Support	Copper Alloy	Crimp	22 AWG	18 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Circular Connectors

JL05xA Spec Sheet

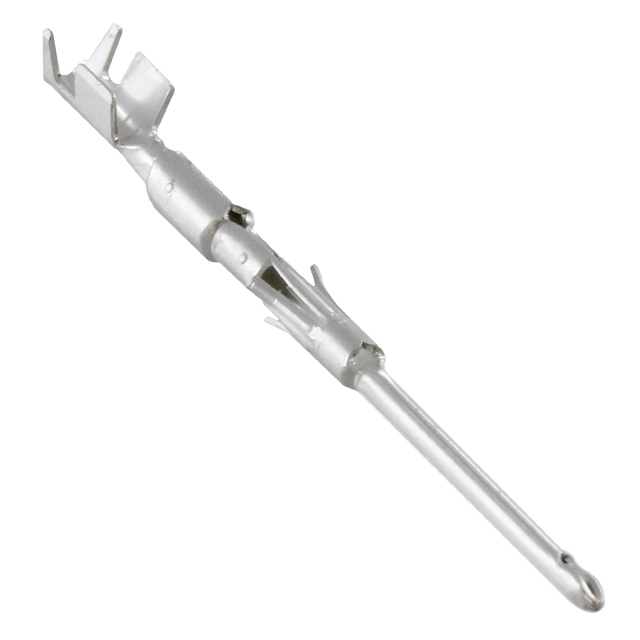

ST-JL05-20P-C1-100 | Datasheet
