MOS3CT631R103J

Active

KOA Speer Electronics, Inc.

RES METAL OXIDE 10K OHM 5% 3W ±300PPM/°C CONFORMAL COATED AXL T/R

MOS3CT631R103J

Active

KOA Speer Electronics, Inc.

RES METAL OXIDE 10K OHM 5% 3W ±300PPM/°C CONFORMAL COATED AXL T/R

Description Specifications Series Pricing CAD Documents

Description

General part information

MOS3CT631 Series

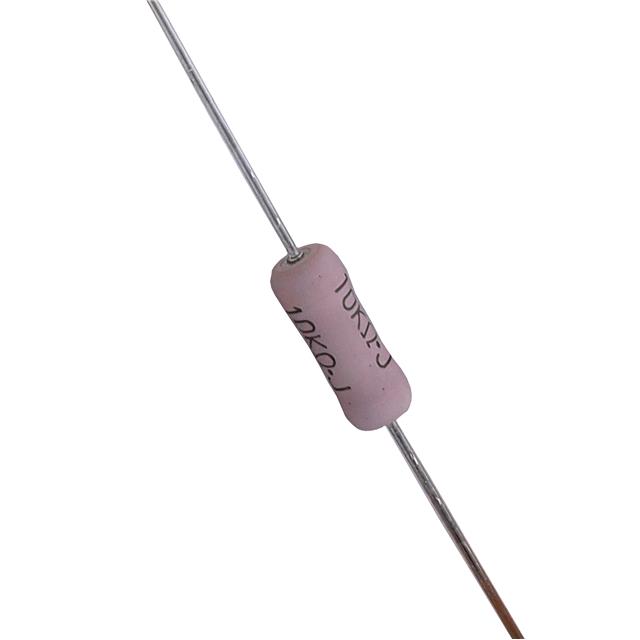

10 kOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film

Technical Specifications

Parameters and characteristics for this part

Specification	MOS3CT631R103J

Composition	Metal Oxide Film
Features	Flame Retardant Coating, Safety
Number of Terminations	2
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-55 °C
Package / Case	Axial
Package Name	Axial
Power (Watts)	3 W
Resistance	10 kOhm
Size / Dimension Diameter	0.236 in
Size / Dimension Length	0.61 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

MOS3CT631 Series

Part	Temperature Coefficient	Package Name	Features	Power (Watts)	Package / Case	Composition	Resistance	Size / Dimension Diameter	Size / Dimension Length	Tolerance	Operating Temperature (Min)	Operating Temperature (Max)	Number of Terminations
KOA Speer Electronics, Inc. MOS3CT631R622J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	6.2 kOhm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R561J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	560 Ohm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R681J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	680 Ohm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R241J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	240 Ohm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R200J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	20 Ohm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R103J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	10 kOhm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R680J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	68 Ohm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R330J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	33 Ohms	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R152J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	1.5 kOhms	0.236 in	0.61 in	5 %	-55 °C	200 °C	2
KOA Speer Electronics, Inc. MOS3CT631R243J	300 ppm/°C	Axial	Flame Retardant Coating Safety	3 W	Axial	Metal Oxide Film	24 kOhm	0.236 in	0.61 in	5 %	-55 °C	200 °C	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MOS3CT631R103J | Datasheet
