Specification	DMS-40PC-1-YS-C

Display Characters - Height	0.52 in
Display Type	LED - Yellow Characters
Features	Bezel Sold Separately
Measuring Range (DC) Maximum	2 VDC
Measuring Range (DC) Minimum	-2 VDC
Measuring Type	Voltage
Mounting Type	Panel Mount
Number of Characters Per Row	4.5 characters
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Output Type	Reference
Panel Cutout Length	53.8 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	22.3 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply	5 VDC
Weight	0.046 lb

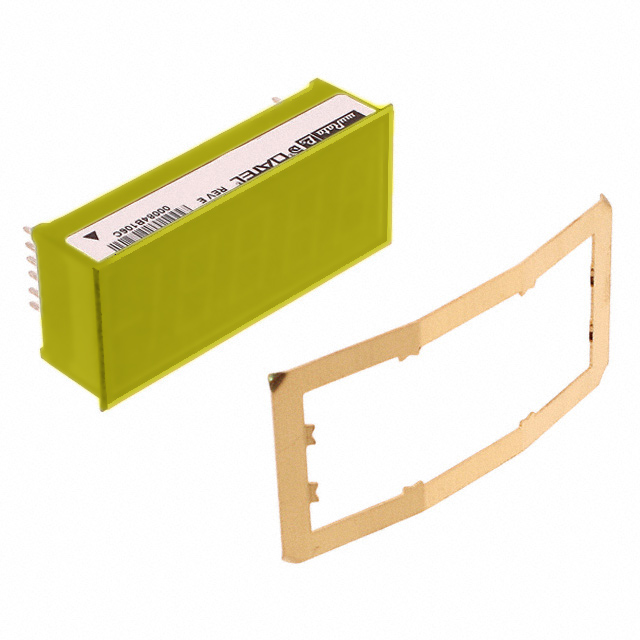

DMS-40PC Series

Part	Operating Temperature (Max)	Weight	Mounting Type	Measuring Type	Display Characters - Height	Display Type	Voltage - Supply	Number of Characters Per Row	Features	Measuring Range (Min)	Measuring Range (Max)	Type	Termination Style	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Measuring Range (DC) Maximum	Measuring Range (DC) Minimum	Output Type

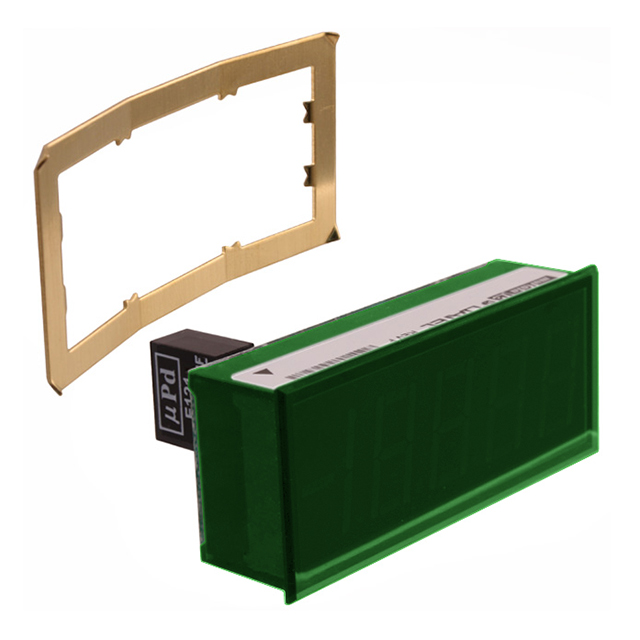

Murata Electronics DMS-40PC-4/20S-24GS-I-C	50 °C	0.062 lb	Panel Mount	Process	0.52 in	LED - Green Characters	24 VDC	4.5 characters	Bezel Sold Separately	0.004 mA	0.02 mA	Process Meter	Screw Terminal	53.8 mm	Rectangular	22.3 mm
Murata Electronics DMS-40PC-2-RH-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	20 VDC	-20 VDC	Reference
Murata Electronics DMS-40PC-4/20S-24RS-I-C	50 °C	0.062 lb	Panel Mount	Process	0.52 in	LED - Red Characters	24 VDC	4.5 characters		0.004 mA	0.02 mA	Process Meter	Screw Terminal	53.8 mm	Rectangular	22.3 mm
Murata Electronics DMS-40PC-1-RH-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters				Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	2 VDC	-2 VDC
Murata Electronics DMS-40PC-3-RS-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	200 VDC	-200 VDC	Reference
Murata Electronics DMS-40PC-1-YS-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Yellow Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	2 VDC	-2 VDC	Reference
Murata Electronics DMS-40PC-2-RL-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters				Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	20 VDC	-20 VDC
Murata Electronics DMS-40PC-2-RS-BCD-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	20 VDC	-20 VDC	Reference
Murata Electronics DMS-40PC-1-RS-BCD-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Red Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	2 VDC	-2 VDC	Reference
Murata Electronics DMS-40PC-3-GS-C	50 °C	0.046 lb	Panel Mount	Voltage	0.52 in	LED - Green Characters	5 VDC	4.5 characters	Bezel Sold Separately			Voltmeter	PC Pin	53.8 mm	Rectangular	22.3 mm	200 VDC	-200 VDC	Reference
