213849-1

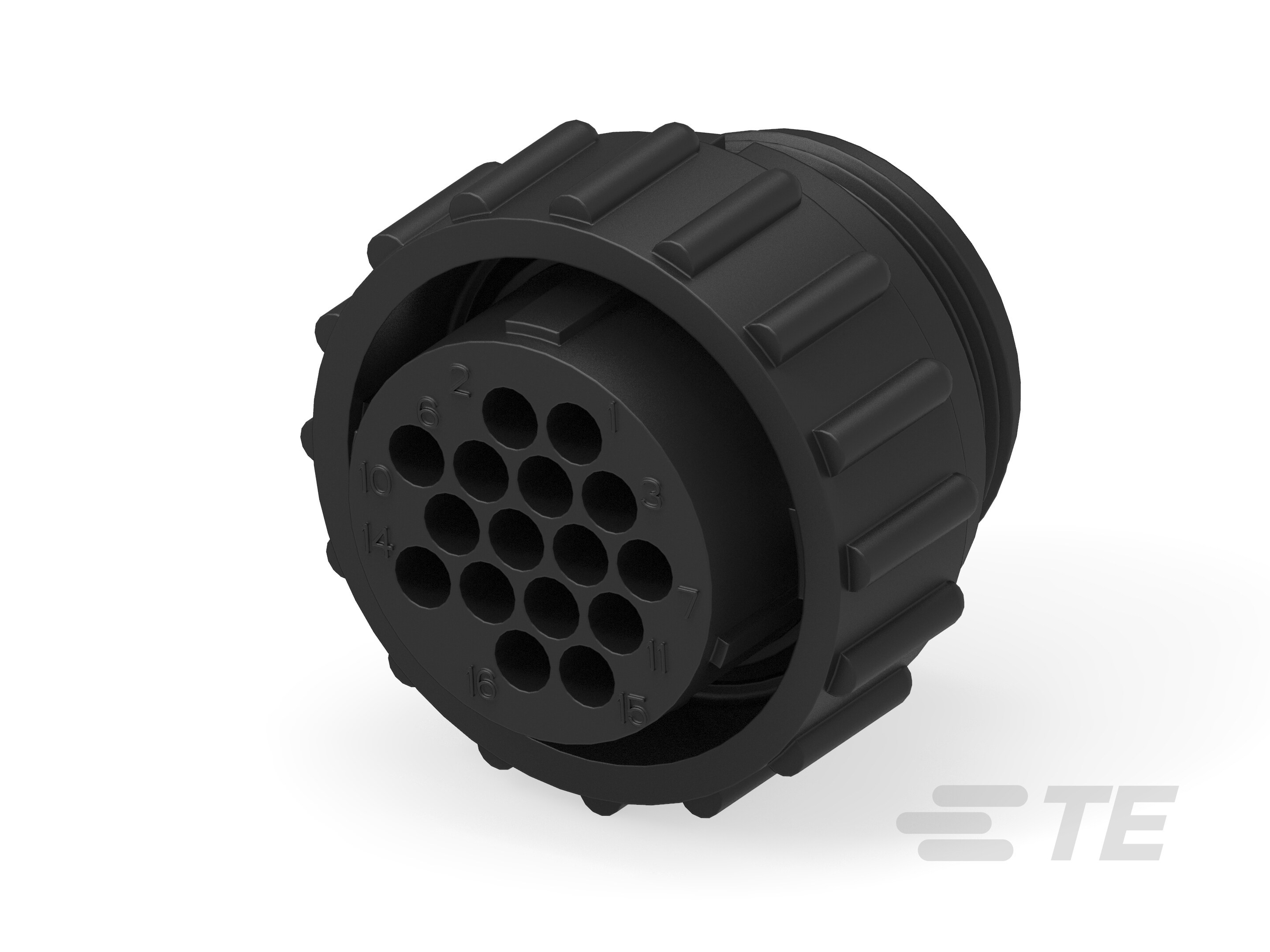

ActiveCIRCULAR CONNECTOR, CPC SERIES 1, CABLE MOUNT PLUG, 16 CONTACTS

213849-1
ActiveCIRCULAR CONNECTOR, CPC SERIES 1, CABLE MOUNT PLUG, 16 CONTACTS
Description
General part information
Circular Plastic Connectors Series 1 Series
The 213849-1 is a 16-position Plug Assembly with socket type contacts and UL94V-0 rated black thermoplastic housing. The CPC series 1 circular power connector has keyed mating alignment and threaded coupling mating retention. The series 1 connector permit the use of multiple combinations of signal and coaxial circuits in the same housing by accepting durable Multimate contacts. This socket contacts include type III+ and subminiature coaxial contacts, interchangeable in the same Multimate contact cavity.
Technical Specifications
Parameters and characteristics for this part
| Specification | 213849-1 |
|---|---|
| Connector Type | Plug Housing |
| Contact Size | 16 S |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Coupling Nut |
| Housing Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Orientation | B |
| Primary Material | Plastic |
| Shell Material | Nylon 6, Glass Filled, Polyamide (PA6), Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert Length | 17 mm |
| Shell Size - Insert Width | 16 mm |
| Shielding | Unshielded |
| Type | For Female Sockets |
