206934 Series

Catalog

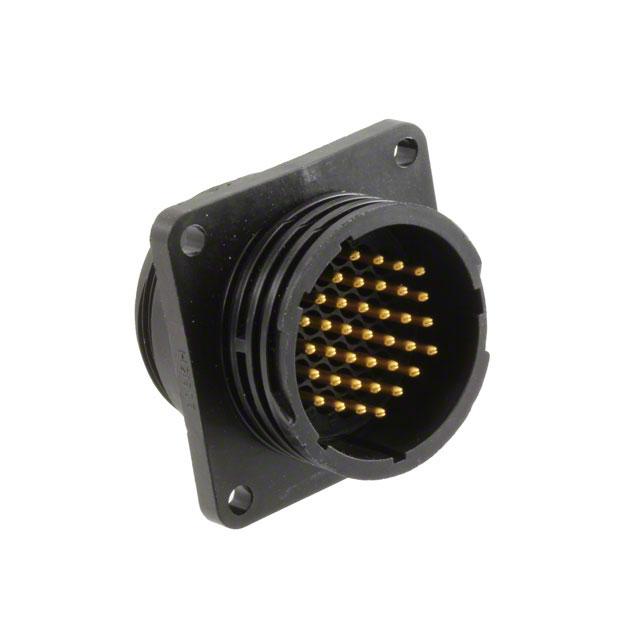

CONN RCPT MALE 37POS GOLD SOLDER

Part	Termination	Number of Positions	Contact Finish - Mating	Connector Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Mounting Type	Shell Material	Orientation	Shielding	Material Flammability Rating	Mounting Feature	Fastening Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Primary Material	Contact Material	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 3-206934-1	Solder	37 pos	Gold	Male Pins Receptacle	23	37
TE Connectivity AMP Connectors 206934-9	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A	Unshielded	UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass
TE Connectivity AMP Connectors 1-206934-3	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A	Unshielded	UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass
TE Connectivity AMP Connectors 206934-5	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A		UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass	30 µin
TE Connectivity AMP Connectors 206934-7	Solder	37 pos	Gold	Male Pins Receptacle	23	37	Panel Mount Through Hole	Thermoplastic	A		UL94 V-0	Flange	Threaded	Black	-55 °C	105 °C	250 V	DC	Plastic	Brass	30 µin
TE Connectivity AMP Connectors 2-206934-7
