ActiveCRIMP TOOL DIE, SDE DIE SET, MULTIMATE TYPE III+ AND TYPE VI CONTACTS

58495-2
ActiveCRIMP TOOL DIE, SDE DIE SET, MULTIMATE TYPE III+ AND TYPE VI CONTACTS
Description
General part information
58495 Series

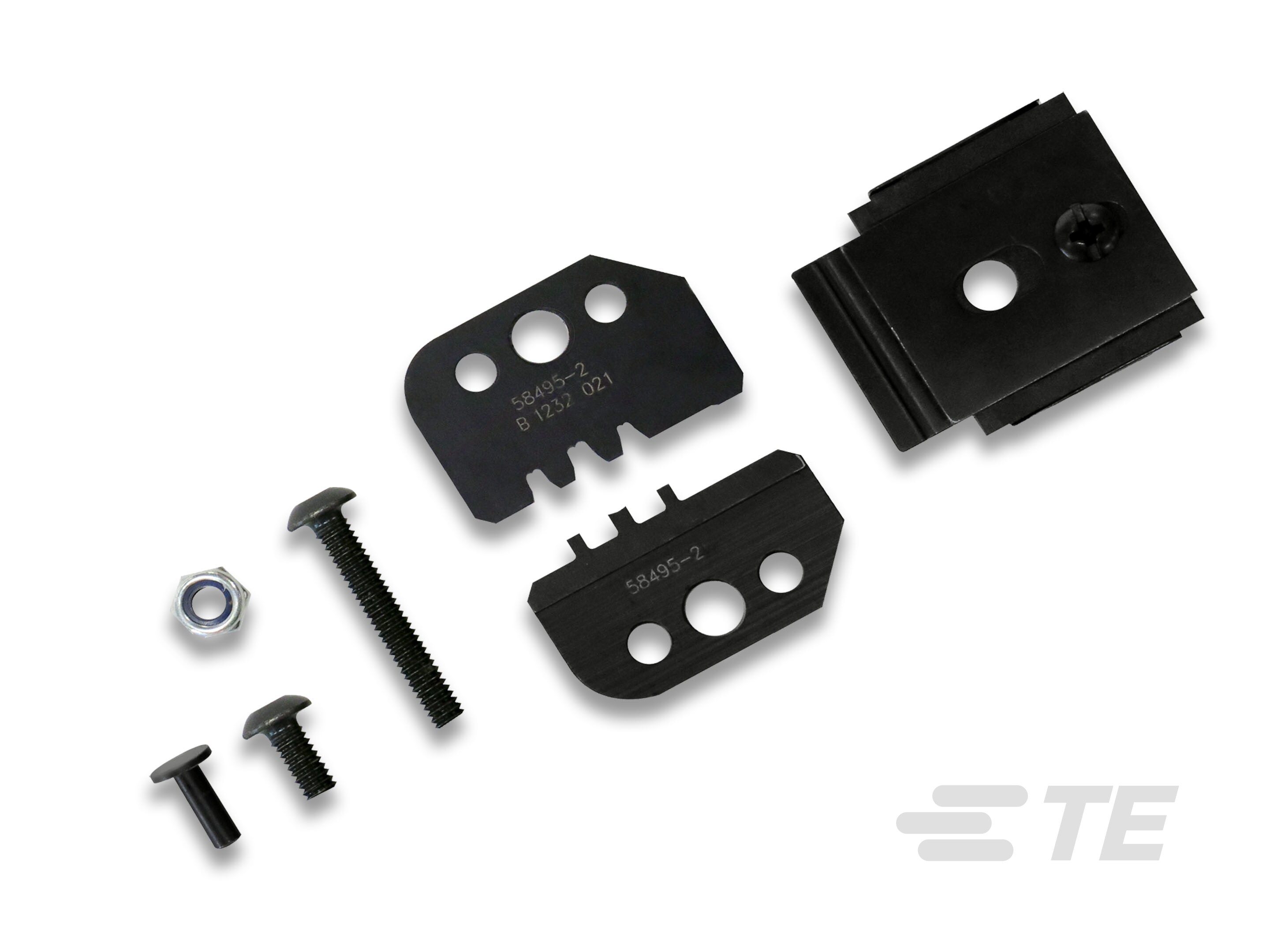

The 58495-2 is a SDE Die Set for 28 to 16AWG Multimate type III+ and type VI contacts. This SDE die set consists of crimping dies and a locator assembly and it features a wire anvil, an insulation anvil, a wire crimper, and an insulation crimper. Die retaining pins and die retaining screws are used to position and secure the dies in the tool frame. A nut is used on the upper die retaining screw to hold the locator assembly in place.
Technical Specifications
Parameters and characteristics for this part
| Specification | 58495-2 |
|---|---|
| Compatible Tools | 679304-1, 1490076-2, 2031460-1, 9-1478240-0, 354940-1 |
| For Use With/Related Products | 16-28 AWG, Backplane and Circular Contacts |
| Related Product Maximum Gauge | 28 AWG |
| Related Product Minimum Gauge | 16 AWG |
| Related Product Type | Backplane and Circular Contacts |
| Tool Type | Die Set |
