112424RP

Active

Amphenol RF

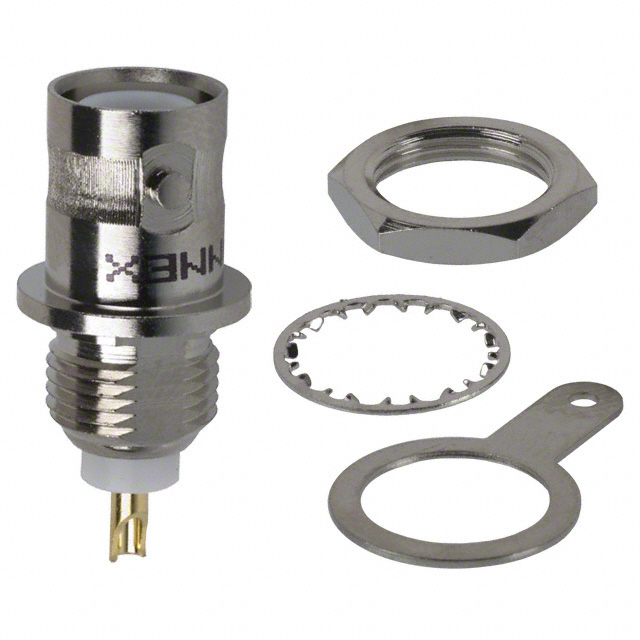

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	112424RP

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Male Pin, Receptacle
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Solder Tag, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder Tag
Voltage Rating	500 V

Part	Number of Ports	Housing Color	Contact Termination	Body Material	Shield Termination	Dielectric Material	Body Finish	Mounting Feature	Connector Style	Fastening Type	Center Contact Material	Connector Type	Voltage Rating	Center Contact Plating	Includes	Features	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Impedance	Frequency - Max [Max]
Amphenol RF 112424RP	1	Silver	Solder Cup	Brass	Solder Tag	Polytetrafluoroethylene (PTFE)	Nickel	Bulkhead - Rear Side Nut	RP-BNC	Bayonet Lock	Brass	Male Pin Receptacle	500 V	Gold	1 Connector 1 Lockwasher 1 Nut 1 Solder Tag	Extended Insulation	500	-65 ░C	165 °C	0.2 dB	50 Ohms	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-BNC Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
