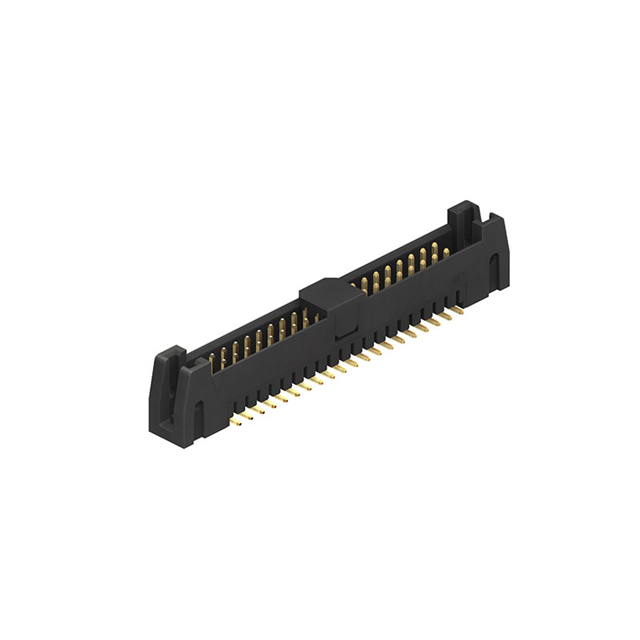

3110-40-003-11-00-TR

Active

CnC Tech, LLC

HEADER, 0.079" (2.00MM), 40 POS.

Search across all available documentation for this part.

Active

CnC Tech, LLC

HEADER, 0.079" (2.00MM), 40 POS.

Technical Specifications

Parameters and characteristics for this part

Specification	3110-40-003-11-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Termination	Style	Fastening Type	Contact Shape	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Number of Rows	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Features	Contact Material
CnC Tech, LLC 3110-40-001-13-00	Solder	Board to Cable/Wire	Latch Lock/Eject Hooks Long	Square	Through Hole	0.079 in	2 mm	Flash	Shrouded - 4 Wall	0.122 "	3.1 mm	2	All	UL94 V-0	40	Gold	Male Pin	0.079 in	2 mm	Header	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	Keying Slot	Brass
CnC Tech, LLC 3110-40-003-13-00-TR	Solder	Board to Cable/Wire	Latch Lock/Eject Hooks Long	Square	Surface Mount	0.079 in	2 mm	Flash	Shrouded - 4 Wall			2	All	UL94 V-0	40	Gold	Male Pin	0.079 in	2 mm	Header	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	Keying Slot	Brass
CnC Tech, LLC 3110-40-003-11-00-TR	Solder	Board to Cable/Wire	Push-Pull	Square	Surface Mount	0.079 in	2 mm	Flash	Shrouded - 4 Wall			2	All	UL94 V-0	40	Gold	Male Pin	0.079 in	2 mm	Header	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	Keying Slot	Brass
CnC Tech, LLC 3110-40-001-11-00	Solder	Board to Cable/Wire	Push-Pull	Square	Through Hole	0.079 in	2 mm	Flash	Shrouded - 4 Wall	0.122 "	3.1 mm	2	All	UL94 V-0	40	Gold	Male Pin	0.079 in	2 mm	Header	-40 °C	105 ░C	Polybutylene Terephthalate (PBT)	Keying Slot	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 40 position 0.079" (2.00mm)
