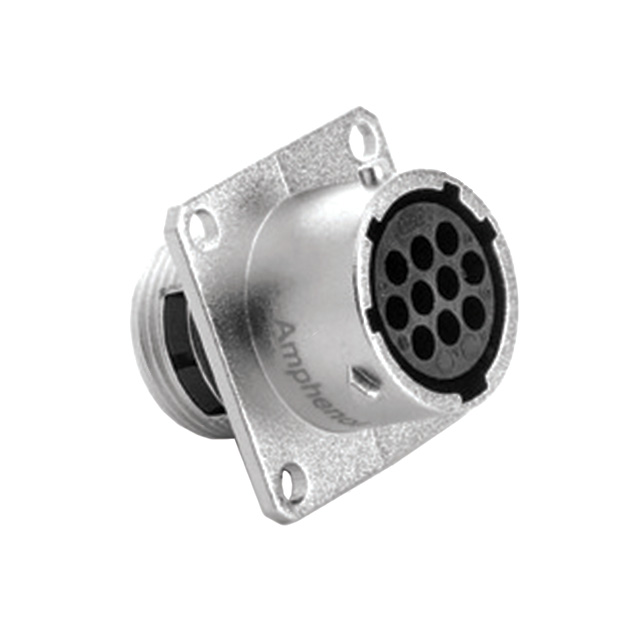

Specification	RT0W01210SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	10 mm
Shielding	Shielded
Type	For Female Sockets

RT0W01210 Series

Part	Connector Type	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Housing Color	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Type	Contact Type	Features	Orientation	Fastening Type	Contact Size	Shielding	Number of Positions	Shell Finish	Shell Material	Material Flammability Rating	Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Note	Insert Material	Current Rating	Contact Finish Thickness - Mating	Color	Contact Finish - Mating	Termination	Voltage Rating	Voltage Rating (Type)
McGill Microwave Systems RT0W01210PNHEC03	Receptacle Housing	Flange	Dust Tight Waterproof	IP67	Metal	Silver	10 mm	12 mm	Free Hanging (In-Line) Panel Mount	Crimp	Backshell	N (Normal)	Bayonet Lock	20	Unshielded	10	Nickel	Zinc Alloy	UL94 V-0	For Male Pins
McGill Microwave Systems RT0W01210SNH	Receptacle Housing	Flange	Dust Tight Waterproof	IP67		Silver	10 mm	12 mm	Panel Mount	Crimp		N (Normal)	Bayonet Lock	20	Shielded	10	Nickel	Zinc Alloy	UL94 V-0	For Female Sockets	Circular	-40 °C	105 °C	Contacts Not Included	Thermoplastic
McGill Microwave Systems RT0W01210PNHEC03R	Receptacle Housing	Flange	Dust Tight Waterproof	IP67		Silver	10 mm	12 mm	Panel Mount	Crimp	Backshell	N (Normal)	Bayonet Lock	20	Shielded	10	Nickel	Zinc Alloy	UL94 V-0	For Male Pins	Circular	-40 °C	125 °C	Contacts Not Included	Thermoplastic
McGill Microwave Systems RT0W01210SNHEC03	Receptacle Housing	Flange	Dust Tight Waterproof	IP67	Metal	Silver	10 mm	12 mm	Free Hanging (In-Line) Panel Mount	Crimp	Backshell	N (Normal)	Bayonet Lock	20	Unshielded	10	Nickel	Zinc Alloy	UL94 V-0	For Female Sockets
McGill Microwave Systems RT0W01210PNHECR
McGill Microwave Systems RT0W01210SNHECR
McGill Microwave Systems RT0W01210PNH-K	Male Pins Receptacle	Flange	Dust Tight Waterproof	IP67	Metal		10 mm	12 mm	Panel Mount			N (Normal)	Bayonet Lock			10	Nickel	Zinc Die Cast				-40 °C	105 °C			7.5 A	Flash	Silver	Gold	Crimp	150 VDC	DC
