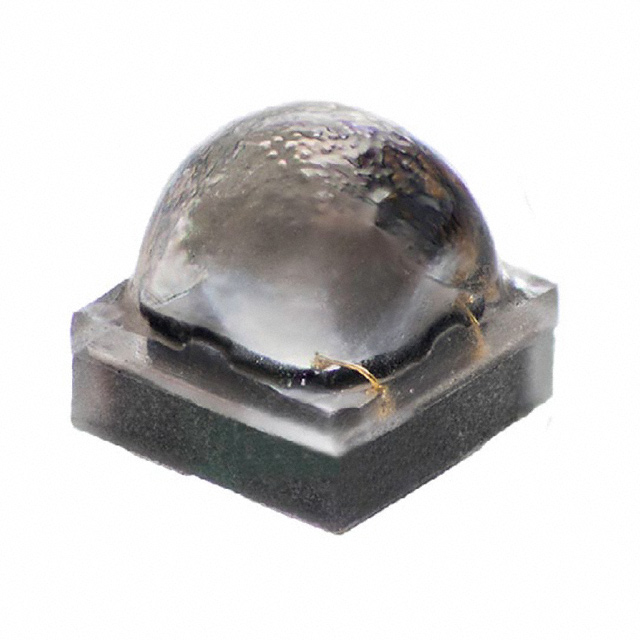

XQEROY-02-0000-000000Q01

Active

Cree LED

XLAMP XQ-E LIGHT EMITTING DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XQEROY-02-0000-000000Q01

Active

Cree LED

XLAMP XQ-E LIGHT EMITTING DIODE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQEROY-02-0000-000000Q01	XQEROY Series

Color	Blue	Blue
Current - Max [Max]	1 A	1 - 1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max)	-	0.9 mm
Height - Seated (Max) [Max]	1.73 mm	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "	0.035 - 0.068 "
Luminous Flux @ Current/Temperature	613 mW	513 - 638 mW
Luminous Flux @ Current/Temperature	-	525 mW
Luminous Flux @ Current/Temperature	-	550 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	SMD, 0606
Thermal Resistance of Package [custom]	6 °C/W	6 °C/W
Viewing Angle	125 °	125 - 130 °
Voltage - Forward (Vf) (Typ)	3.1 V	2.8 - 3.1 V
Wavelength	458 nm	455 - 460 nm
Wavelength	-	465 nm
Wavelength	-	455 nm

XQEROY Series

XLAMP XQ-E LIGHT EMITTING DIODE ROYAL BLUE

Part	Current - Test	Wavelength	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Viewing Angle	Supplier Device Package	Mounting Type	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Wavelength [Max]	Wavelength [Min]
Cree LED XQEROY-00-0000-000000P02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm
Cree LED XQEROY-H0-0000-000000Q01	350 mA	458 nm	2.8 V	1.5 A	130 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "		613 mW	0.9 mm
Cree LED XQEROY-00-0000-000000R02	350 mA	455 nm	2.9 V	1.5 A	125 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.068 "	1.73 mm	638 mW
Cree LED XQEROY-02-0000-000000M01	350 mA	458 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	538 mW		525 mW	550 mW
Cree LED XQEROY-02-0000-000000Q02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	613 mW
Cree LED XQEROY-02-0000-000000M02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	538 mW		525 mW	550 mW
Cree LED XQEROY-00-0000-000000L03	350 mA	460 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	513 mW				465 nm	455 nm
Cree LED XQEROY-H0-0000-000000Q02	350 mA	455 nm	2.8 V	1.5 A	130 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "		613 mW	0.9 mm
Cree LED XQEROY-00-0000-000000R01	350 mA	458 nm	2.9 V	1.5 A	125 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.068 "	1.73 mm	638 mW
Cree LED XQEROY-H2-0000-000000P03	350 mA		3.1 V	1 A	130 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.82

Description

General part information

XQEROY Series

LED Lighting Color XLamp® XQ-E Blue 458nm (450nm ~ 465nm) 0606 (1616 Metric)

Documents

Technical documentation and resources
