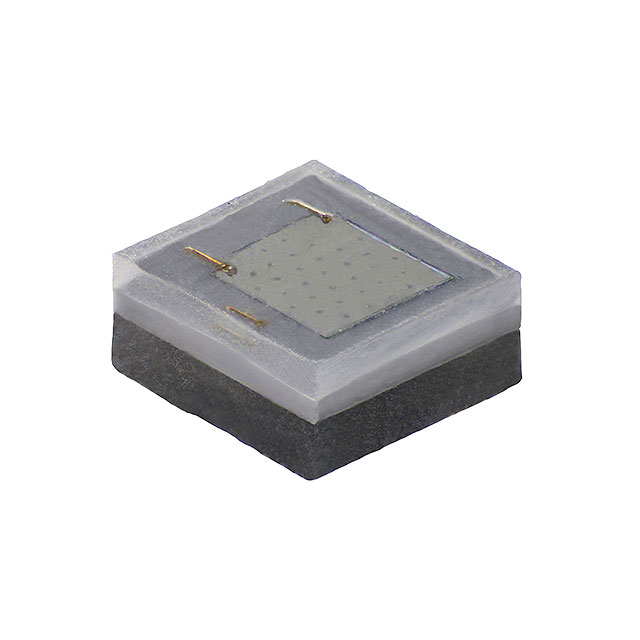

XQEROY-H2-0000-000000P03

Active

Cree LED

LED XLAMP XQE BLUE SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XQEROY-H2-0000-000000P03

Active

Cree LED

LED XLAMP XQE BLUE SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 1.76
		500	$ 1.65
		1250	$ 1.52

Description

General part information

XQEROY Series

LED Lighting Color XLamp® XQ-E Blue 0606 (1616 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XQEROY-H2-0000-000000P03	XQEROY Series

Color	Blue	Blue
Current - Max [Max]	1 A	1 - 1.5 A
Current - Test	350 mA	350 mA
Height - Seated (Max)	-	0.9 mm
Height - Seated (Max) [Max]	1.73 mm	1.73 mm
Height - Seated (Max) [Max] [z]	0.068 "	0.035 - 0.068 "
Luminous Flux @ Current/Temperature	-	513 - 638 mW
Luminous Flux @ Current/Temperature	-	525 mW
Luminous Flux @ Current/Temperature	-	550 mW
Mounting Type	Surface Mount	Surface Mount
Package / Case	0606, 1616 Metric	0606, 1616 Metric
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [x]	0.063 in	0.063 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Supplier Device Package	SMD	SMD, 0606
Thermal Resistance of Package [custom]	6 °C/W	6 °C/W
Viewing Angle	130 °	125 - 130 °
Voltage - Forward (Vf) (Typ)	3.1 V	2.8 - 3.1 V
Wavelength	-	455 - 460 nm
Wavelength	-	465 nm
Wavelength	-	455 nm

XQEROY Series

XLAMP XQ-E LIGHT EMITTING DIODE ROYAL BLUE

Part	Current - Test	Wavelength	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Viewing Angle	Supplier Device Package	Mounting Type	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Wavelength [Max]	Wavelength [Min]
Cree LED XQEROY-00-0000-000000P02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm
Cree LED XQEROY-H0-0000-000000Q01	350 mA	458 nm	2.8 V	1.5 A	130 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "		613 mW	0.9 mm
Cree LED XQEROY-00-0000-000000R02	350 mA	455 nm	2.9 V	1.5 A	125 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.068 "	1.73 mm	638 mW
Cree LED XQEROY-02-0000-000000M01	350 mA	458 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	538 mW		525 mW	550 mW
Cree LED XQEROY-02-0000-000000Q02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	613 mW
Cree LED XQEROY-02-0000-000000M02	350 mA	455 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	538 mW		525 mW	550 mW
Cree LED XQEROY-00-0000-000000L03	350 mA	460 nm	3.1 V	1 A	125 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm	513 mW				465 nm	455 nm
Cree LED XQEROY-H0-0000-000000Q02	350 mA	455 nm	2.8 V	1.5 A	130 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "		613 mW	0.9 mm
Cree LED XQEROY-00-0000-000000R01	350 mA	458 nm	2.9 V	1.5 A	125 °	0606	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm		0.068 "	1.73 mm	638 mW
Cree LED XQEROY-H2-0000-000000P03	350 mA		3.1 V	1 A	130 °	SMD	Surface Mount	0606, 1616 Metric	Blue	0.063 in	1.6 mm	0.063 in	1.6 mm	6 °C/W	0.068 "	1.73 mm
