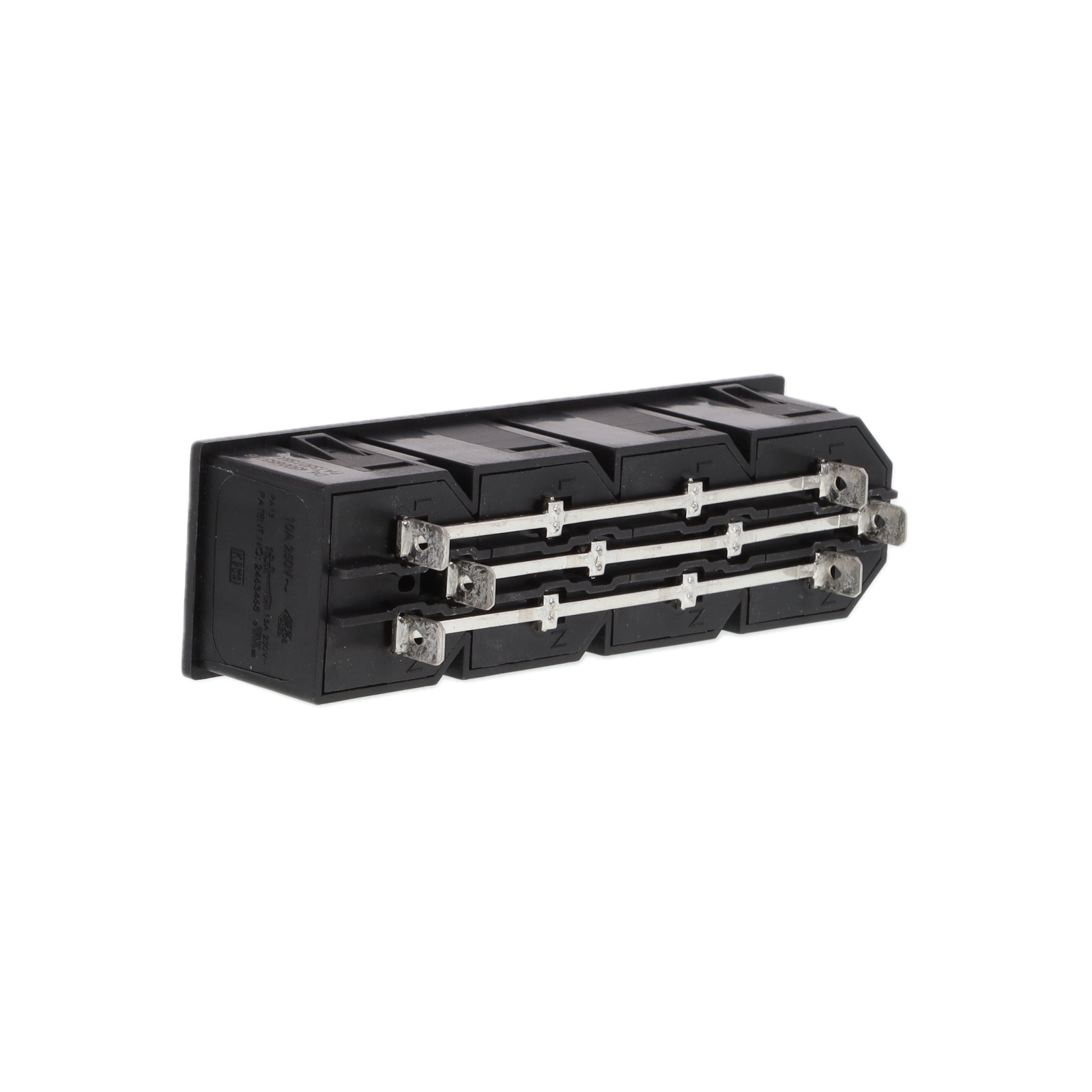

C13-4 TIER-LOCKING OUTLET

Active

Schaffner EMC Inc.

PWR ENT RCPT IEC320-2-2E PANEL

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

PWR ENT RCPT IEC320-2-2E PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	C13-4 TIER-LOCKING OUTLET

Accomodates a Fuse	False
Approval Agency	KEMA, cUL, ENEC
Connector Style	IEC 320-2-2/E
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Number of Positions	3 per connection (4)
Panel Cutout Dimensions [x]	118 mm
Panel Cutout Dimensions [y]	32.6 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 V

PWR ENT RCPT IEC320-2-2E PANEL

Part	Mounting Type	Approval Agency	Number of Positions	Current Rating - Appliance Inlet	Filter Type	Connector Style	Voltage Rating - Appliance Inlet	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Accomodates a Fuse	Connector Type
Schaffner EMC Inc. C13-4 TIER-LOCKING OUTLET	Panel Mount, Snap-In	cUL, ENEC, KEMA	3 per connection (4)	10 A	Unfiltered - Commercial	IEC 320-2-2/E	250 V	0.059 in	1.5 mm	118 mm	32.6 mm	Solder		Receptacle, Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/E Panel Mount, Snap-In
