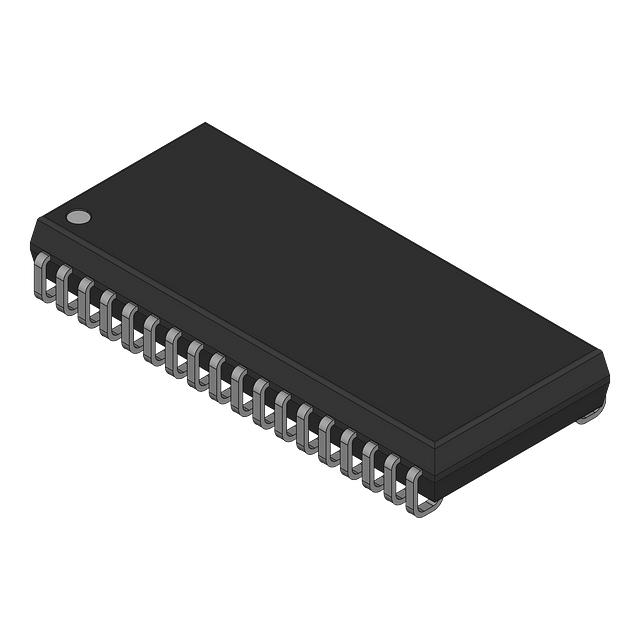

71V424L15Y
ActiveIDT, Integrated Device Technology Inc
IC SRAM 4MBIT PARALLEL 36SOJ
Deep-Dive with AI
Search across all available documentation for this part.
71V424L15Y
ActiveIDT, Integrated Device Technology Inc
IC SRAM 4MBIT PARALLEL 36SOJ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71V424L15Y | 71V424 Series |
|---|---|---|
| Access Time | 15 ns | 12 - 15 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 512 K | 512 K |
| Memory Size | 512 kb | 512 kb |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 36-BSOJ | 36-BSOJ, 44-TSOP |
| Package / Case | - | 10.16 mm |
| Package / Case | - | 10.16 mm |
| Package / Case [x] | 10.16 mm | 10.16 mm |
| Package / Case [x] | 0.4 in | 0.4 in |
| Supplier Device Package | 36-SOJ | 36-SOJ, 44-TSOP II |
| Technology | SRAM - Asynchronous | SRAM - Asynchronous |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
| Write Cycle Time - Word, Page | 15 ns | 12 - 15 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 139 | $ 2.17 | |
71V424 Series
IC SRAM 4MBIT PARALLEL 36SOJ
| Part | Technology | Memory Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Interface | Package / Case | Package / Case [x] | Package / Case [x] | Supplier Device Package | Memory Format | Write Cycle Time - Word, Page | Mounting Type | Access Time | Memory Size | Memory Organization | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 71V424L15Y | SRAM - Asynchronous | Volatile | 3.6 V | 3 V | Parallel | 36-BSOJ | 10.16 mm | 0.4 in | 36-SOJ | SRAM | 15 ns | Surface Mount | 15 ns | 512 kb | 512 K | 70 °C | 0 °C | ||
IDT, Integrated Device Technology Inc 71V424S15PHG | SRAM - Asynchronous | Volatile | 3.6 V | 3 V | Parallel | 44-TSOP | 44-TSOP II | SRAM | 15 ns | Surface Mount | 15 ns | 512 kb | 512 K | 70 °C | 0 °C | 10.16 mm | 10.16 mm | ||
IDT, Integrated Device Technology Inc 71V424L12PHG | SRAM - Asynchronous | Volatile | 3.6 V | 3 V | Parallel | 44-TSOP | 44-TSOP II | SRAM | 12 ns | Surface Mount | 12 ns | 512 kb | 512 K | 70 °C | 0 °C | 10.16 mm | 10.16 mm |
Description
General part information
71V424 Series
SRAM - Asynchronous Memory IC 4Mbit Parallel 15 ns 36-SOJ
