E2I-10-20-018-0

Active

Igus

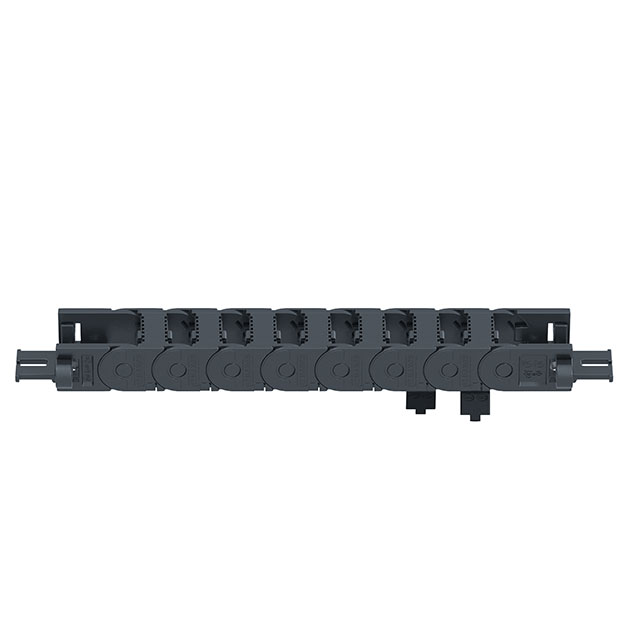

CABLE CARRIER .59H X 1.08W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .59H X 1.08W 1=1FT

Technical Specifications

Parameters and characteristics commom to parts in this series

CABLE CARRIER, .59H X .53W 1=1FT

Part	Outer Height	Outer Height	Cavity Width [y]	Cavity Width [y]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Frame Type	Outer Width [x]	Outer Width [x]	Loading Side	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius	Link Pitch	Link Pitch	Cavity Height	Cavity Height	Minimum Bend Radius [radius]	Minimum Bend Radius [radius]	Outer Width	Outer Width	Cavity Width [x]	Cavity Width [x]	Outer Width
Igus E2I-10-06-028-0	14.99 mm	0.59 in	7.11 mm	0.28 in	Igumid G	-40 °C	120 °C	Open	13.46 mm	0.53 in	Inside and Outside Bend	1.1 in	27.94 mm	0.79 in	20.07 mm	0.4 in	10.16 mm
Igus E2I-10-30-038-0	14.99 mm	0.59 in	29.97 mm	1.18 in	Igumid G	-40 °C	120 °C	Open			Inside and Outside Bend			0.79 in	20.07 mm	0.4 in	10.16 mm	38.1 mm	1.5 in	37.34 mm	1.47 in
Igus E2I-10-20-018-0	14.99 mm	0.59 in			Igumid G	-40 °C	120 °C	Open			Inside and Outside Bend			0.79 in	20.07 mm	0.4 in	10.16 mm	18.03 mm	0.71 in	1.08 "		20.07 mm	0.79 in	27.43 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .59H X 1.08W 1=1FT
