COMBO D-SUB CONN, RCPT, DB-17W2, TH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

COMBO D-SUB CONN, RCPT, DB-17W2, TH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	681M17W2203L101

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Contact Material	Shell Size, Connector Layout	Color	Shell Material, Finish	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Contact Type	Number of Positions [custom]	Number of Positions [custom]	Flange Feature	Dielectric Material	Connector Style	Number of Rows	Connector Type	Features	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
MH Connectors 681M17W2103L101	Solder	Copper Alloy	17W2 3 (DB B)	Black	Nickel Plated Steel	Flash	Gold	5 A 40 A	UL94 V-0	Signal and Power	15	2	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT)	Combo D-Sub	2	Male Pins Plug	Grounding Indents	250 VDC	-55 °C	125 °C	Panel Mount Through Hole
MH Connectors 681M17W2103L111	Solder	Copper Alloy	17W2 3 (DB B)	Black	Nickel Plated Steel	Flash	Gold	5 A 40 A	UL94 V-0	Signal and Power	15	2	4-40 Board Side	Polybutylene Terephthalate (PBT)	Combo D-Sub	2	Male Pins Plug	Grounding Indents	250 VDC	-55 °C	125 °C	Panel Mount Through Hole
MH Connectors 681M17W2203L101	Solder	Copper Alloy	17W2 3 (DB B)	Black	Nickel Plated Steel	Flash	Gold	5 A 40 A	UL94 V-0	Signal and Power	15	2	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT)	Combo D-Sub	2	Receptacle Female Sockets		250 VDC	-55 °C	125 °C	Panel Mount Through Hole
MH Connectors 681M17W2203L111	Solder	Copper Alloy	17W2 3 (DB B)	Black	Nickel Plated Steel	Flash	Gold	5 A 40 A	UL94 V-0	Signal and Power	15	2	4-40 Board Side	Polybutylene Terephthalate (PBT)	Combo D-Sub	2	Receptacle Female Sockets		250 VDC	-55 °C	125 °C	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

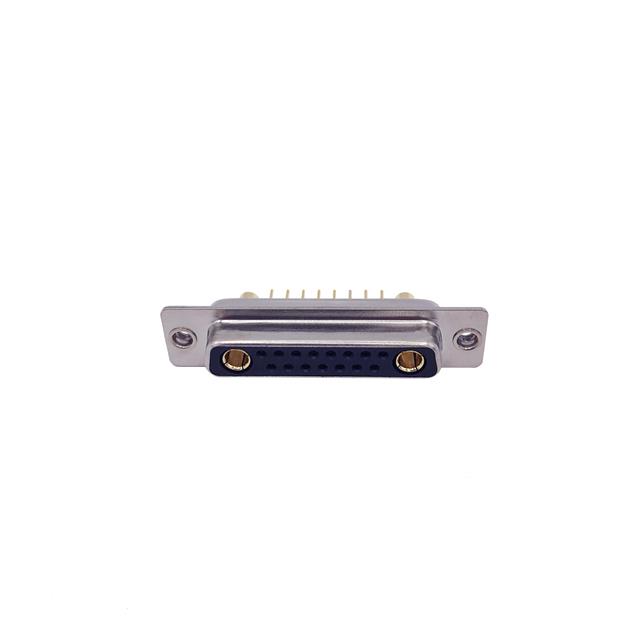

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
