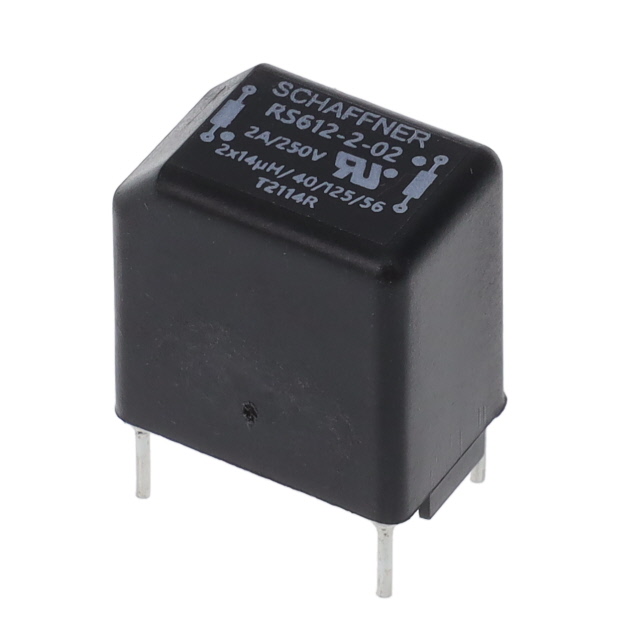

RS612-2-02

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 2A TH

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 2A TH

Technical Specifications

Parameters and characteristics for this part

Part	Configuration	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Frequency - Operating	Filter Type	Inductance	Voltage - Rated AC	Current	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max)	Voltage Rating - AC	Approval Agency	Inductance @ Frequency	Number of Lines	Package / Case	Package / Case	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)
TE Connectivity Raychem Cable Protection RS612-2-02	Single Stage	Through Hole	125 °C	-40 °C	General Purpose	400 Hz	Single Phase	56 µH	250 V	2 A
TE Connectivity Raychem Cable Protection RS612-1-02		Through Hole	125 °C	-40 °C							0.787 in	20 mm	18 mm	0.709 in	0.492 "	12.5 mm	1 A	250 V	UR VDE	55 µH	2	4 Lead	Vertical	130 mOhm
TE Connectivity Raychem Cable Protection RS612-4-02		Through Hole	125 °C	-40 °C							0.787 in	20 mm	18 mm	0.709 in	0.492 "	12.5 mm	4 A	250 V	UR VDE	3 µH	2	4 Lead	Vertical		10 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.70

General part information

Single Phase EMC/EMI Line Filter 2 A 250V DC ~ 400Hz Single Stage
