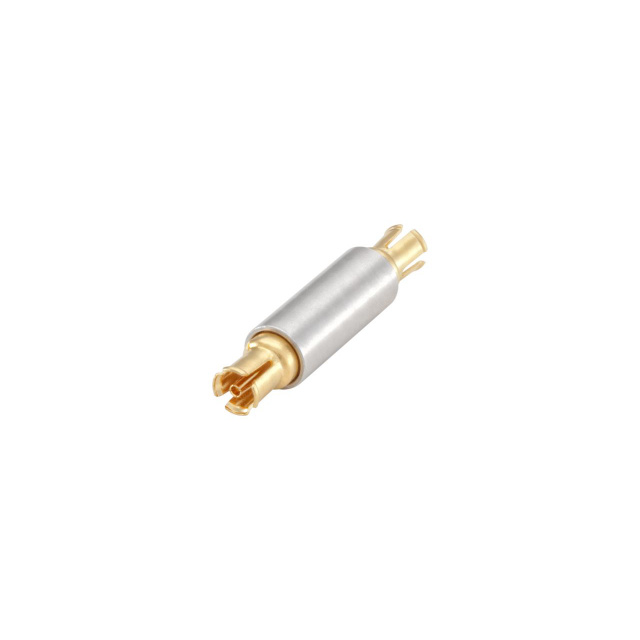

17K117-K03L5

Active

Rosenberger

LONGWIPE SMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

LONGWIPE SMP ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	17K117-K03L5

Adapter Series	SMP to SMP
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Insertion Loss	0.12 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Convert From (Adapter End)	Body Material	Center Contact Material	Frequency - Max [Max]	Body Finish	Mating Cycles	Dielectric Material	Adapter Series	Center Contact Plating	Convert To (Adapter End)	Center Gender	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Style	Fastening Type	Insertion Loss	Adapter Type	Conversion Type
Rosenberger 17K117-K03L5	50 Ohms	SMP Jack Female Socket	Brass	Beryllium Copper	6000 MHz	White Bronze	1000	Polytetrafluoroethylene (PTFE)	SMP to SMP	Gold	Female Socket SMP Jack	Female to Female	155 °C	-65 ░C	Free Hanging (In-Line)	Straight	Snap-On	0.12 dB	Jack to Jack	Same Series
Rosenberger 17K117-K02L5	50 Ohms	SMP Jack Female Socket	Beryllium Copper	Beryllium Copper	6000 MHz	Gold		Polytetrafluoroethylene (PTFE)	SMP to SMP	Gold	Female Socket SMP Jack	Female to Female	155 °C	-65 ░C	Free Hanging (In-Line)	Straight	Snap-On		Jack to Jack	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 9.86

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
