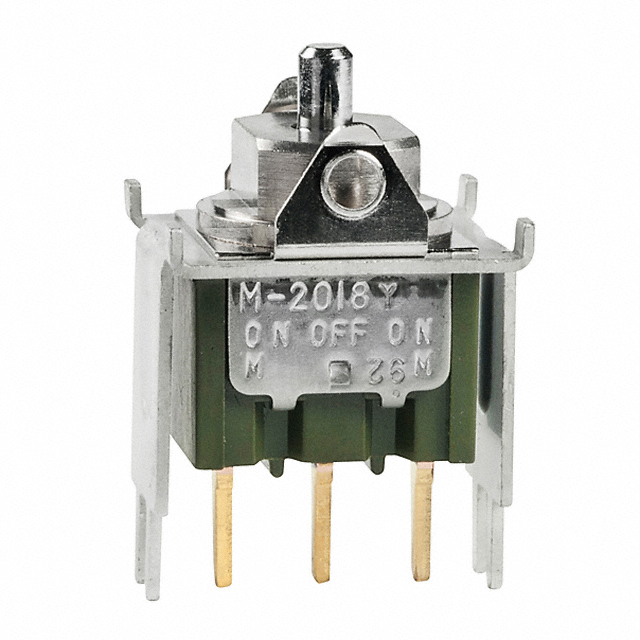

M2018TZG13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Features	Actuator Marking	Voltage Rating - AC	Electrical Life	Voltage Rating - DC	Termination Style	Mounting Type	Actuator Type	Circuit	Color - Actuator/Cap
NKK Switches M2018TZG13	0.4 VA	Mom-Off-Mom	-30 ░C	85 °C	CSA UL	Epoxy Sealed Terminals	Varies by Cap	28 V	50000 Cycles	28 V	PC Pin	Through Hole	Actuator Arm Cap Required	SPDT
NKK Switches M2018TZW13-JE	3 A 6 A	Mom-Off-Mom	-30 ░C	85 °C	CSA UL	Epoxy Sealed Terminals	No Marking	125 V	25000 Steps	30 V	PC Pin	Through Hole	Concave (Standard V)	SPDT	Yellow
NKK Switches M2018TZW13-JA	3 A 6 A	Mom-Off-Mom	-30 ░C	85 °C	CSA UL	Epoxy Sealed Terminals	No Marking	125 V	25000 Steps	30 V	PC Pin	Through Hole	Concave (Standard V)	SPDT	Black
NKK Switches M2018TZG13-JA	0.4 VA	Mom-Off-Mom	-30 ░C	85 °C	CSA UL	Epoxy Sealed Terminals	No Marking	28 V	50000 Cycles	28 V	PC Pin	Through Hole	Concave (Standard V)	SPDT	Black
NKK Switches M2018TZW13/U	6 A	Mom-Off-Mom	-30 ░C	85 °C	CSA UL	Epoxy Sealed Terminals	Varies by Cap	125 V	25000 Steps		PC Pin	Through Hole	Actuator Arm Cap Required	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
