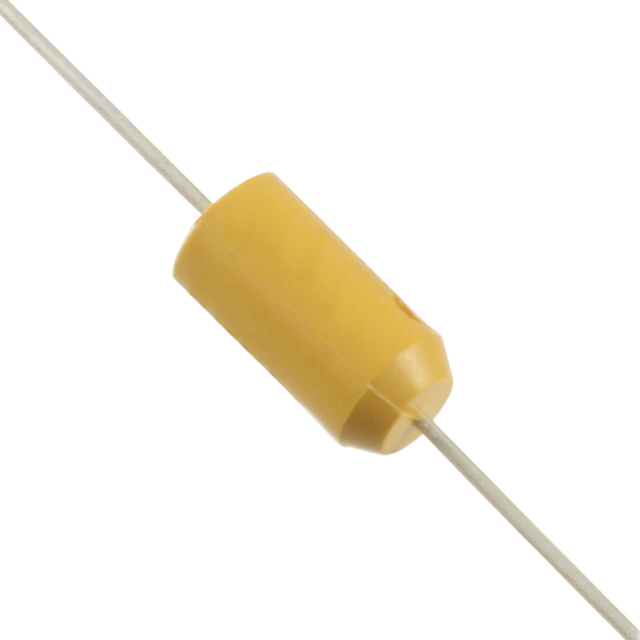

T322C226K006AT

Active

KEMET

TANTALUM CAPACITOR, MOLDED, 22 ΜF, 6 V, ± 10%, PC PIN, 3.7 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, MOLDED, 22 ΜF, 6 V, ± 10%, PC PIN, 3.7 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	T322C226K006AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	3.7 Ohm
Features	General Purpose
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.18 "
Size / Dimension [diameter]	4.57 mm
Size / Dimension [x]	8.76 mm
Size / Dimension [x]	0.345 in
Tolerance	10 %
Type	Molded
Voltage - Rated	6 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Capacitance	Package / Case	Mounting Type	Features	Tolerance	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated
KEMET T322C226K010AS	-55 °C	125 °C	Molded	22 µF	Axial	Through Hole	General Purpose	10 %	2.7 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	10 V
KEMET T322C106K025AT	-55 °C	125 °C	Molded	10 µF	Axial	Through Hole	General Purpose	10 %	2.5 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	25 VDC
KEMET T322C106K015AT	-55 °C	125 °C	Molded	10 µF	Axial	Through Hole	General Purpose	10 %	3.2 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	15 V
KEMET T322C475K035AT	-55 °C	125 °C	Molded	4.7 µF	Axial	Through Hole	General Purpose	10 %	3 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	35 V
KEMET T322C226K006AT	-55 °C	125 °C	Molded	22 µF	Axial	Through Hole	General Purpose	10 %	3.7 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	6 VDC
KEMET T322C106M020AT	-55 °C	125 °C	Molded	10 µF	Axial	Through Hole	General Purpose	20 %	2.9 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	20 V
KEMET T322C685K025AS	-55 °C	125 °C	Molded	6.8 ÁF	Axial	Through Hole	General Purpose	10 %	3.1 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	25 VDC
KEMET T322C226K006AS	-55 °C	125 °C	Molded	22 µF	Axial	Through Hole	General Purpose	10 %	3.7 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	6 VDC
KEMET T322C475K035AT7200	-55 °C	125 °C	Molded	4.7 µF	Axial	Through Hole	General Purpose	10 %		0.18 "	8.76 mm	4.57 mm	0.345 in	35 V
KEMET T322C336K006AS	-55 °C	125 °C	Molded	33 ÁF	Axial	Through Hole	General Purpose	10 %	3 Ohm	0.18 "	8.76 mm	4.57 mm	0.345 in	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF Molded Tantalum Capacitors 6 V Axial 3.7Ohm
