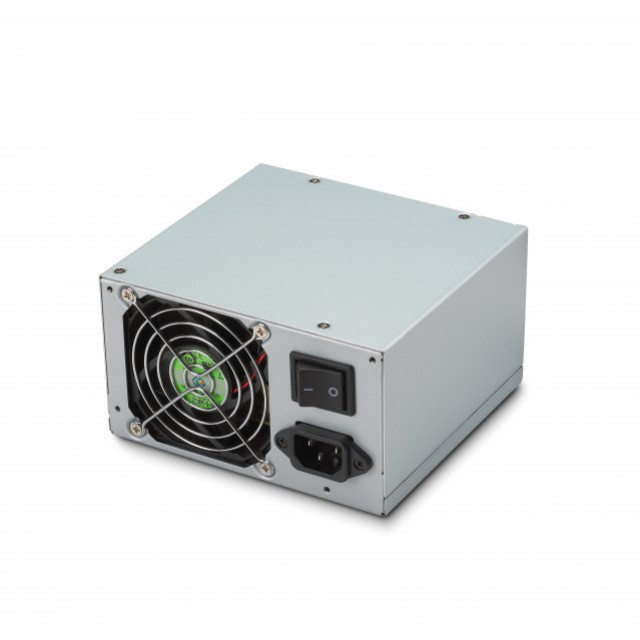

FSP500-70MPE

Active

FSP Technology Inc.

AC/DC CNVT 3.3V 5V 2X12V 2X-5V

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC CNVT 3.3V 5V 2X12V 2X-5V

Technical Specifications

Parameters and characteristics for this part

Specification	FSP500-70MPE

Applications	ITE (Commercial), Medical
Approval Agency	TUV, FCC, CE, VCCI, cURus
Current - Output 1	32 A
Current - Output 2	30 A
Current - Output 3	18 A
Current - Output 4	18 A
Current - Output 5	200 mA
Current - Output 6	800 mA
Efficiency	78 %
Features	Standby Output, Universal Input, PFC
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	6
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	0 °C
Power (Watts)	698 W
Size / Dimension [x]	150 mm
Size / Dimension [x]	5.91 "
Size / Dimension [y]	5.51 "
Size / Dimension [y]	140 mm
Size / Dimension [z]	86 mm
Size / Dimension [z]	3.39 "
Standard Number	60950-1, 60601-1
Type	ATX
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	3.3 V
Voltage - Output 2	5 V
Voltage - Output 3	12 V
Voltage - Output 4	12 V
Voltage - Output 5	-5 V
Voltage - Output 6	-5 V

AC/DC CNVT 3.3V 5V 2X12V 2X-5V

Part	Applications	Number of Outputs	Voltage - Output 4	Voltage - Output 3	Type	Minimum Load Required	Efficiency	Voltage - Output 2	Current - Output 6	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Output 4	Voltage - Output 1	Voltage - Output 6	Mounting Type	Approval Agency	Current - Output 5	Current - Output 3	Current - Output 2	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Power (Watts)	Voltage - Output 5	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number
FSP Technology Inc. FSP500-70MPE	ITE (Commercial), Medical	6	12 V	12 V	ATX		78 %	5 V	800 mA	86 mm	150 mm	5.51 "	3.39 "	5.91 "	140 mm	PFC, Standby Output, Universal Input	18 A	3.3 V	-5 V	Chassis Mount	CE, cURus, FCC, TUV, VCCI	200 mA	18 A	30 A	90 VAC	264 VAC	32 A	698 W	-5 V	0 °C	50 °C	60601-1, 60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ATX AC DC Converters 6 Output 3.3V 5V 12V 12V 90 ~ 264 VAC Input
