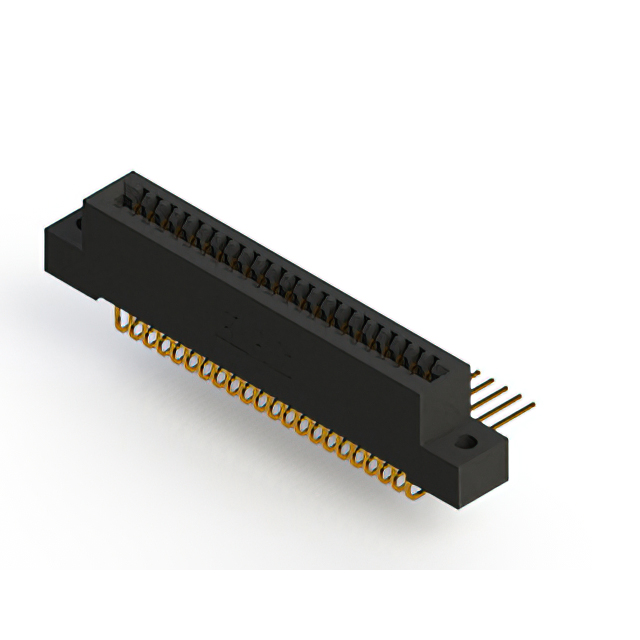

CARD EDGE CONNECTOR, 44 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-044-559-202
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 44 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE .128, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-044-559-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 44 |
| Number of Positions/Bay/Row [custom] | 22 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-044 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Type | Read Out | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish | Mounting Type | Color | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Material - Insulation | Number of Positions | Termination | Termination Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 44 | Cantilever | Single | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 22 | Cantilever | Dual | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 2 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 22 | Cantilever | Dual | Female | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 2 | 10 Áin | 0.25 Ám |
EDAC Inc. | 44 | Cantilever | Single | Female | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 1 | 10 Áin | 0.25 Ám |
EDAC Inc. | 44 | Cantilever | Single | Female | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 1 | 10 Áin | 0.25 Ám | ||
EDAC Inc. | 22 | Cantilever | Dual | Female | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 2 | 10 Áin | 0.25 Ám |
EDAC Inc. | 22 | Cantilever | Dual | Female | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder Eyelet(s) | 2 | 10 Áin | 0.25 Ám |
EDAC Inc. | 22 | Cantilever | Dual | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder Eyelet(s) | 2 | 10 Áin | 0.25 Ám |
EDAC Inc. | 22 | Cantilever | Dual | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole Right Angle | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 2 | 10 Áin | 0.25 Ám |
EDAC Inc. | 22 | Cantilever | Dual | Female | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 125 °C | -40 °C | Copper Alloy | Gold | Through Hole | Black | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Polyphenylene Sulfide (PPS) | 44 | Solder | 2 | 10 Áin | 0.25 Ám |
