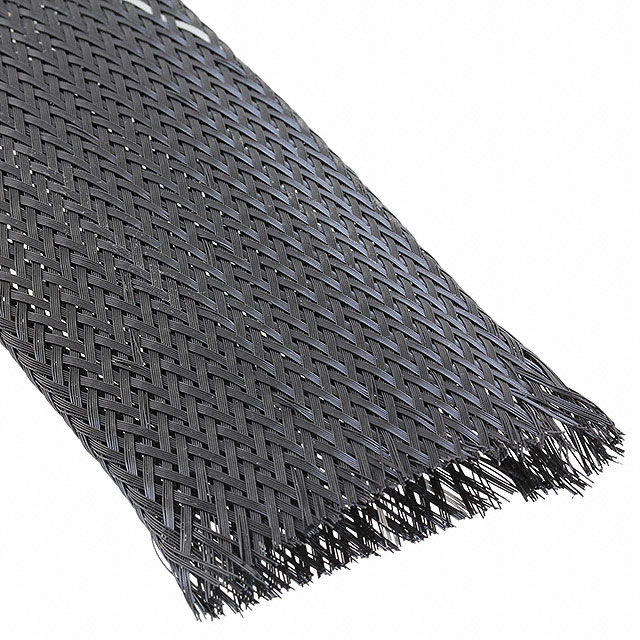

VERSAFLEX-FR-2-09-SP

Technical Specifications

Parameters and characteristics for this part

Specification	VERSAFLEX-FR-2-09-SP

Abrasion Protection	Abrasion and Cut Resistant
Color	White, Black
Diameter - Inside, Expanded [diameter]	76 mm
Diameter - Inside, Expanded [diameter]	2.992 in
Diameter - Inside, Non-Expanded [diameter]	2.008 in
Diameter - Inside, Non-Expanded [diameter]	51 mm
Features	Self Extinguishing, Chemical Resistant, Fungus Resistant, Solvent Resistant
Heat Protection	Flame Retardant
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyester (PES)
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Type	Sleeve
Type Attributes	Expandable

Part	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material Flammability Rating	Heat Protection	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Length [x]	Length [x]	Material	Type Attributes
TE Connectivity Raychem Cable Protection VERSAFLEX-FR-2-09-SP	2.008 in	51 mm	UL VW-1	Flame Retardant	Abrasion and Cut Resistant	76 mm	2.992 in	Black White	Chemical Resistant Fungus Resistant Self Extinguishing Solvent Resistant	150 °C	-50 °C	Sleeve	1 m	3.28 ft	Polyester (PES)	Expandable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Braid Wall, Polyester, Flame-Retardant, Box, -50 – 150 °C, Mechanical Damage, Flexible, Global, RAYCHEM VERSAFLEX-FR
