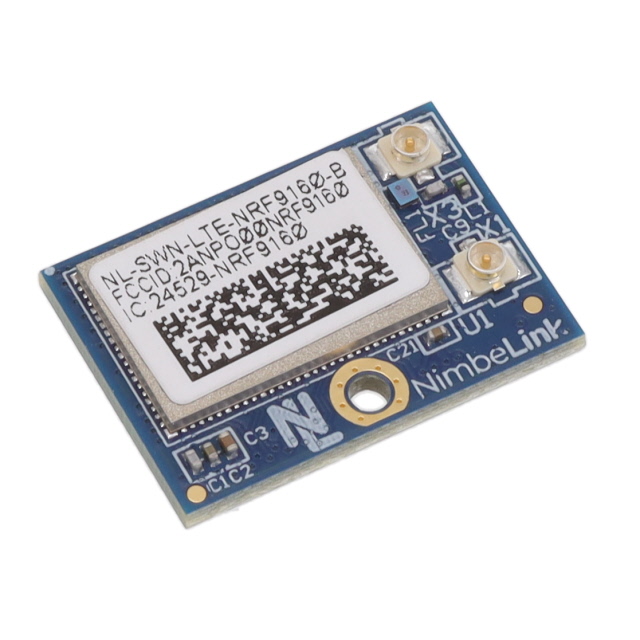

NL-SWN-LTE-NRF9160-B

Active

NimbeLink, LLC

RF TXRX MOD CELL NAV IGATIONCHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NL-SWN-LTE-NRF9160-B

Active

NimbeLink, LLC

RF TXRX MOD CELL NAV IGATIONCHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	252	$ 62.00

Description

General part information

NL-SWN Series

Cellular, Navigation 4G LTE CAT-4 (AT&T/T-Mobile/Verzion), GPS Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Chassis Mount

Documents

Technical documentation and resources

Specification	NL-SWN-LTE-NRF9160-B	NL-SWN Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	375 kbps	375 kbps
Frequency	1.7 GHz, 2100 MHz, 1800 MHz, 850 MHz, 800 MHz, 900 MHz, 700 MHz, 1900 MHz	1.7 - 2100 GHz
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	GPS, 4G LTE CAT-4 (AT&T/T-Mobile/Verzion)	4G LTE CAT-M1/NB-IoT (AT&T, Orange, Telstra, Telus, Verizon, Vodafone), GPS, 4G LTE CAT-4 (AT&T/T-Mobile/Verzion)
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	GPIO, SPI, I2C, UART	GPIO, SPI, I2C, UART
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	3.3 V	3.3 V

Part	Protocol	Frequency	Data Rate	Mounting Type	Serial Interfaces	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Package / Case
NimbeLink, LLC NL-SWN-LTE-NRF9160	4G LTE CAT-M1/NB-IoT (AT&T, Orange, Telstra, Telus, Verizon, Vodafone)	1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	375 kbps	Chassis Mount	GPIO, I2C, SPI, UART	Cellular, Navigation	85 °C	-40 °C	3.3 V	5.5 V	Antenna Not Included	Module
NimbeLink, LLC NL-SWN-LTE-NRF9160-B	4G LTE CAT-4 (AT&T/T-Mobile/Verzion), GPS	1.7 GHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	375 kbps	Chassis Mount	GPIO, I2C, SPI, UART	Cellular, Navigation	85 °C	-40 °C	3.3 V	5.5 V	Antenna Not Included	Module
