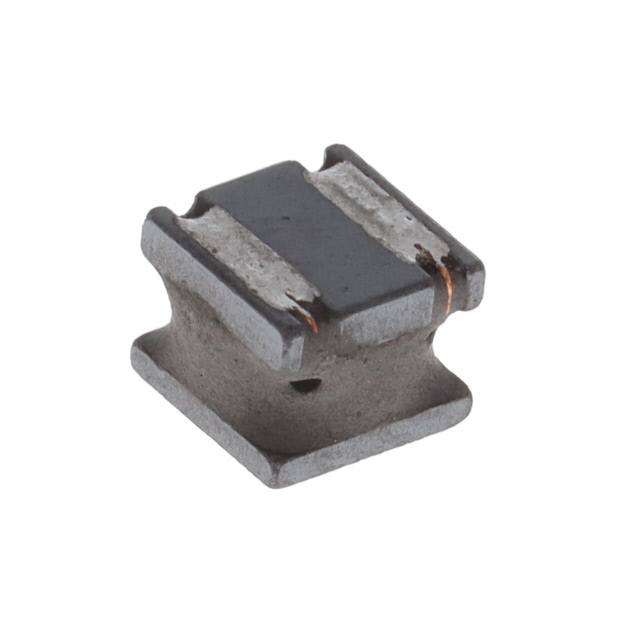

Specification	SDEI054T-330MS

Current - Saturation (Isat)	1.75 A
Current Rating	1.5 A
DC Resistance (DCR) (Max)	211 mOhm
Height - Seated (Max)	0.157 in
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension Length	0.193 in
Size / Dimension Width	0.193 in
Tolerance	20 %

SDEI054T Series

Part	Mounting Type	Height - Seated (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Saturation (Isat)	Inductance Frequency - Test	Tolerance	Current Rating	Inductance	Size / Dimension Width	Size / Dimension Length	Shielding	DC Resistance (DCR) (Max)	Package / Case
Delta Electronics/Cyntec SDEI054T-220MS	Surface Mount	0.157 in	125 °C	-40 °C	2.1 A	100 kHz	20 %	2.1 A	22 µH	0.193 in	0.193 in	Shielded	149 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-4R7MS	Surface Mount	0.157 in	125 °C	-40 °C	4.5 A	100 kHz	20 %	3.6 A	4.7 µH	0.193 in	0.193 in	Shielded	34 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-1R5MS	Surface Mount	0.157 in	125 °C	-40 °C	8 A	100 kHz	20 %	5.5 A	1.5 µH	0.193 in	0.193 in	Shielded	16 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-330MS	Surface Mount	0.157 in	125 °C	-40 °C	1.75 A	100 kHz	20 %	1.5 A	33 µH	0.193 in	0.193 in	Shielded	211 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-1R0MS	Surface Mount	0.157 in	125 °C	-40 °C	9.4 A	100 kHz	20 %	6.85 A	1 µH	0.193 in	0.193 in	Shielded	11 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-101MS	Surface Mount	0.157 in	125 °C	-40 °C	0.9 mA	100 kHz	20 %	900 mA	100 µH	0.193 in	0.193 in	Shielded	589 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-2R2MS	Surface Mount	0.157 in	125 °C	-40 °C	6.7 A	100 kHz	20 %	5.4 A	2.2 µH	0.193 in	0.193 in	Shielded	17.5 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-100MS	Surface Mount	0.157 in	125 °C	-40 °C	3.2 A	100 kHz	20 %	3.1 A	10 µH	0.193 in	0.193 in	Shielded	63 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-470MS	Surface Mount	0.157 in	125 °C	-40 °C	1.44 A	100 kHz	20 %	1.35 A	47 µH	0.193 in	0.193 in	Shielded	294 mOhm	Nonstandard
Delta Electronics/Cyntec SDEI054T-6R8MS	Surface Mount	0.157 in	125 °C	-40 °C	4.1 A	100 kHz	20 %	3.15 A	6.8 µH	0.193 in	0.193 in	Shielded	50 mOhm	Nonstandard
