SSI-LXR3612ID-150

Active

Lumex Opto/Components Inc.

LED 3MM PANEL MNT W/24AWG LEADS

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM PANEL MNT W/24AWG LEADS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSI-LXR3612ID-150	SSI-LXR3612 Series

	-	-
Current	30 mA	12 - 30 mA
Lamp Color	Red	Orange, Green, Red, Blue, Yellow
Lens Color	Red	Orange, Green, Red, Blue, Yellow
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	30 mcd	15 - 100 mcd
Panel Cutout Dimensions	-	6.1 mm
Panel Cutout Dimensions	-	0.24 in
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	-	Wire Leads - 6.000" (152.40mm), Wire Leads - 12" (304.80mm), Wire Leads - 18" (457.20mm)
Type	LED	LED
Viewing Angle	60 °	60 °
Voltage	2 V	1.8 - 5 V
Wavelength - Peak	635 nm	565 - 660 nm

LED PANEL INDICATOR ORANGE 2.1V

Part	Millicandela Rating	Lens Color	Viewing Angle	Lamp Color	Type	Panel Cutout Shape	Lens Transparency	Lens Style	Voltage	Wavelength - Peak	Lens Size	Lens Size	Current	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions
Lumex Opto/Components Inc. SSI-LXR3612SOD-150	100 mcd	Orange	60 °	Orange	LED	Round	Diffused	Round with Domed Top	2.1 V	610 nm	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612YD-150
Lumex Opto/Components Inc. SSI-LXR3612GD-150	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1	25 mA	Wire Leads - 6.000" (152.40mm)
Lumex Opto/Components Inc. SSI-LXR3612SRD	65 mcd	Red	60 °	Red	LED	Round	Diffused	Round with Domed Top	1.8 V	660 nm	3 mm	T-1	30 mA		6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612ID-300	30 mcd	Red	60 °	Red	LED	Round	Diffused	Round with Domed Top	2 V	635 nm	3 mm	T-1	30 mA	Wire Leads - 12" (304.80mm)	6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612USBD150	60 mcd	Blue	60 °	Blue	LED	Round	Diffused	Round with Domed Top	3.5 V		3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612YD	30 mcd	Yellow	60 °	Yellow	LED	Round	Diffused	Round with Domed Top	2.1 V	585 nm	3 mm	T-1	30 mA		6.1 mm	0.24 in
Lumex Opto/Components Inc. SSI-LXR3612SYD-150	100 mcd	Yellow	60 °	Yellow	LED	Round	Diffused	Round with Domed Top	2.1 V	590 nm	3 mm	T-1
Lumex Opto/Components Inc. SSI-LXR3612GD-450	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1		Wire Leads - 18" (457.20mm)
Lumex Opto/Components Inc. SSI-LXR3612GD	30 mcd	Green	60 °	Green	LED	Round	Diffused	Round with Domed Top	2.2 V	565 nm	3 mm	T-1	25 mA		6.1 mm	0.24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

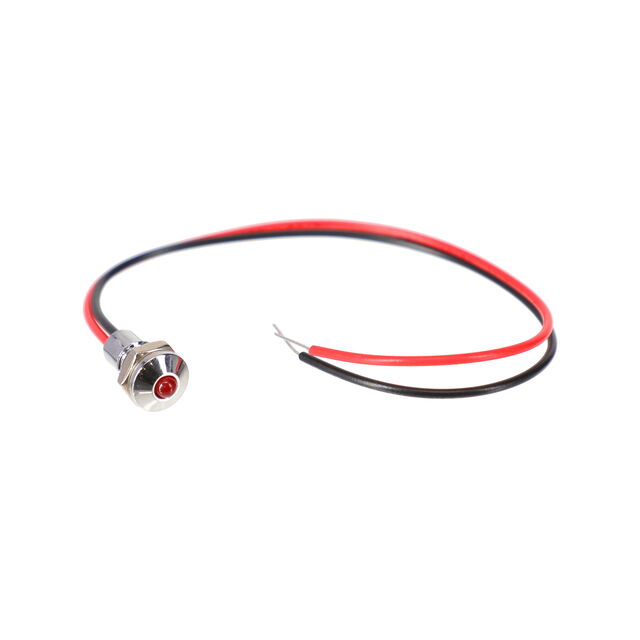

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)
