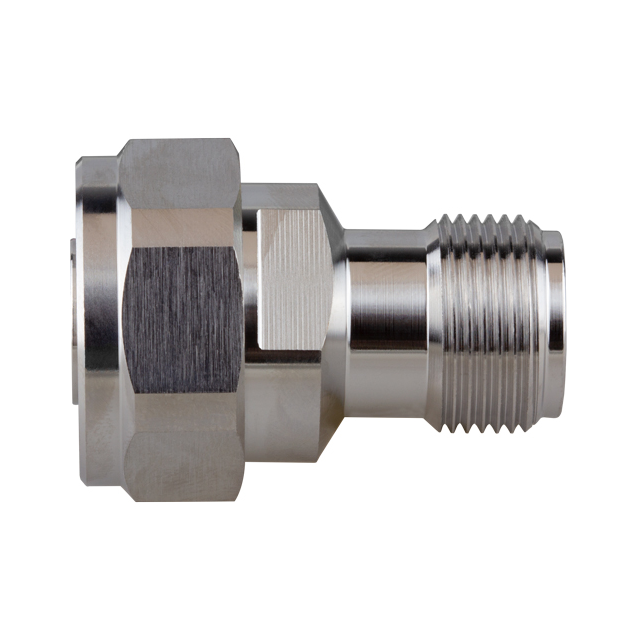

RFN-1046-4

Active

RF Industries

N FEMALE-4.1/9.5 MALE

Search across all available documentation for this part.

Active

RF Industries

N FEMALE-4.1/9.5 MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1046-4

Adapter Series	4.1/9.5, N
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	4.1/9.5 Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Center Contact Material	Adapter Series	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Style	Frequency - Max [Max]	Mounting Type	Mating Cycles	Convert From (Adapter End)	Adapter Type	Conversion Type	Impedance	Convert To (Adapter End)	Dielectric Material	Insertion Loss	Body Material
RF Industries RFN-1046-4	Silver	Phosphor Bronze	4.1/9.5 N	White Bronze	85 °C	-55 °C	Straight	7.5 GHz	Free Hanging (In-Line)	500	4.1/9.5 Plug Male Pin	Plug to Jack	Between Series	50 Ohms	Female Socket N Jack	Polytetrafluoroethylene (PTFE)	0.05 dB	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 4.1/9.5 Plug, Male Pin To N Jack, Female Socket 50 Ohms
