A765KN397M0JLAE030

Active

KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, ALUMINUM (SOLID POLYMER)

Deep-Dive with AI

DocumentsDatasheet KEM_A4070_A765.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A765KN397M0JLAE030

Applications	General Purpose
Capacitance	390 µF
ESR (Equivalent Series Resistance)	30 mOhms
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	3.22 A
Ripple Current @ Low Frequency	161 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	6.3 V

A765KN Series

Part	Applications	Lifetime @ Temp.	Voltage - Rated	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Ripple Current @ Low Frequency	Type	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Capacitance	Ripple Current @ High Frequency
KEMET A765KN277M1ALAE020	General Purpose	2000 Hrs	10 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	180 mA	Polymer	20 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	270 µF	3.6 A
KEMET A765KN337M1CLAE016	General Purpose	2000 Hrs	16 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	194.5 mA	Polymer	16 mOhm	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	330 µF	3.89 A
KEMET A765KN128M0JLAE012	General Purpose	2000 Hrs	6.3 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	238.5 mA	Polymer	12 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	1.2 mF	4.77 A
KEMET A765KN827M0ELAE012	General Purpose	2000 Hrs	2.5 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	244 mA	Polymer	12 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	820 µF	4.88 A
KEMET A765KN397M0JLAE030	General Purpose	2000 Hrs	6.3 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	161 mA	Polymer	30 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	390 µF	3.22 A
KEMET A765KN108M0JLAE012	General Purpose	2000 Hrs	6.3 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	238.5 mA	Polymer	12 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	1000 µF	4.77 A
KEMET A765KN277M1CLAE016	General Purpose	2000 Hrs	16 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	194.5 mA	Polymer	16 mOhm	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	270 µF	3.89 A
KEMET A765KN827M0GLAE012	General Purpose	2000 Hrs	4 V	Surface Mount	105 ░C	-55 °C	Radial Can - SMD	0.394 in	10 mm	20 %	261 mA	Polymer	12 mOhms	0.315 "	8 mm	0.327 "	8.3 mm	0.327 in	8.3 mm	820 µF	5.22 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.68
		10	$ 0.47
		50	$ 0.40
		100	$ 0.33
	Digi-Reel®	1	$ 0.68
		10	$ 0.47
		50	$ 0.40
		100	$ 0.33
	Tape & Reel (TR)	500	$ 0.19
		1000	$ 0.18

Description

General part information

A765KN Series

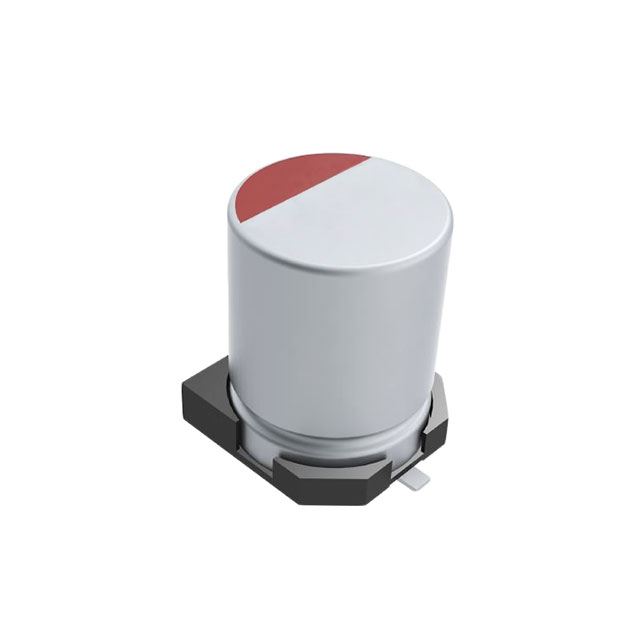

390 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 2000 Hrs @ 105°C
