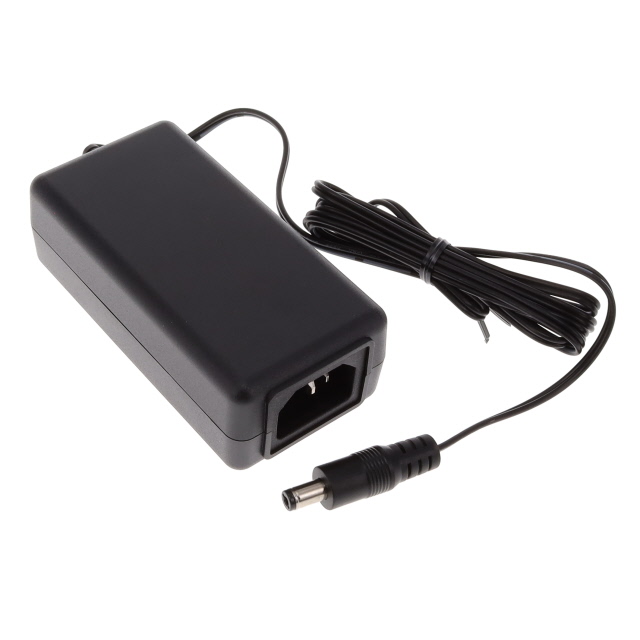

Specification	PPL24U-480

Applications	ITE (Commercial)
Approval Agency	cULus, IEC
Cord Length	59 in
Current - Output (Max)	500 mA
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	10 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	International
Size / Dimension Height	1.3 in
Size / Dimension Length	3.94 in
Size / Dimension Width	1.97 in
Standard Number	62368-1
Voltage - Input (AC) Maximum	240 VAC
Voltage - Input (AC) Minimum	100 VAC
Voltage - Output	48 V

PPL24U Series

Part	Input Connector	Region Utilized	Form	Approval Agency	Input Type	Standard Number	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Power (Watts)	Polarization	No Load Power Consumption (Max)	Cord Length	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Applications	Output Connector O.D.	Output Connector	Output Connector I.D.	Output Connector Length	Voltage - Output	Current - Output (Max)	Efficiency
Phihong USA PPL24U-480	IEC 320-C14	International	Desktop (Class I)	cULus IEC	Cord (Sold Separately)	62368-1	1.97 in	3.94 in	1.3 in	24 W	Positive Center	75 mW	59 in	40 °C	0 °C	240 VAC	100 VAC	ITE (Commercial)	5.5 mm	Barrel Plug	2.1 mm	10 mm	48 V	500 mA	CoC Tier 2 Level VI
