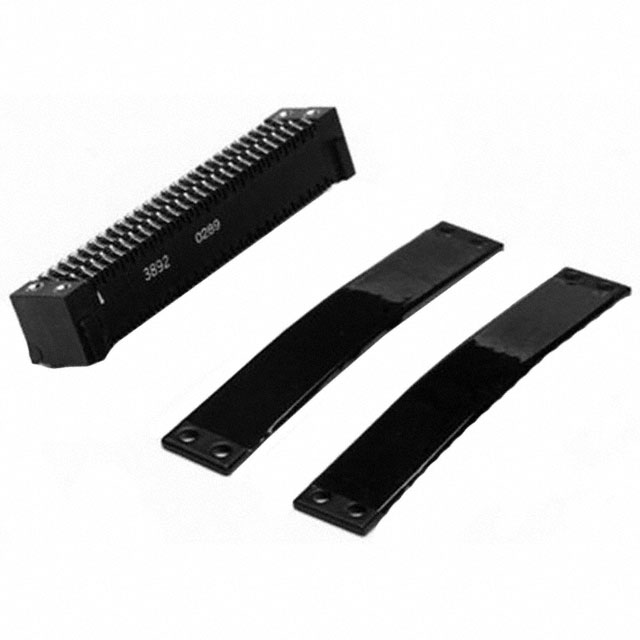

3893-0050

Obsolete

3M (TC)

CONN STACKING 150POS SCREW LOCK

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN STACKING 150POS SCREW LOCK

Technical Specifications

Parameters and characteristics for this part

Specification	3893-0050

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	8.7 mm
Height Above Board	0.343 in
Mounting Type	Surface Pressure with Screw Lock
Number of Positions	150
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions
3M (TC) 3893-0050	Gold	8.7 mm	0.343 in	0.76 Ám	30 Áin	Surface Pressure with Screw Lock	0.05 in	1.27 mm	150
3M (TC) 3893-0000	Gold	8.7 mm	0.343 in	0.76 Ám	30 Áin	Surface Pressure with Screw Lock	0.05 in	1.27 mm	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 Position Connector Stacking Compression Surface Pressure with Screw Lock Gold

Technical documentation and resources
