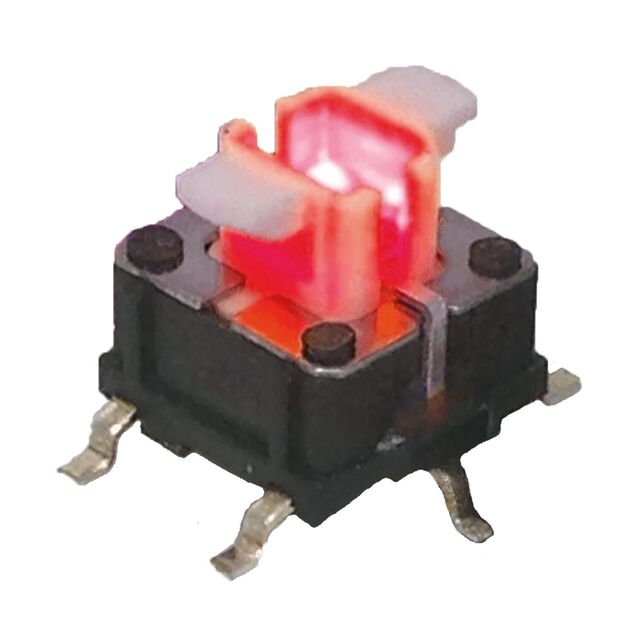

TL3265RQNN

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3265RQNN

Actuator Height off PCB, Vertical [z]	7.2 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Illuminated
Illumination Type, Color	Red, LED
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	7 mm
Outline [y]	6.8 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Switch Function	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Mounting Type	Outline [y]	Outline [x]	Circuit	Switch Travel	Actuator Orientation	Actuator Type	Termination Style	Illumination Type, Color	Mechanical Life	Illumination	Actuator Height off PCB, Vertical	Shape	For Use With/Related Products	Size [z]	Size [diameter]	Color	Switch Type	Illumination Voltage (Nominal)
E-Switch TL3265RQNN	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C	7.2 mm	Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Plunger for Cap	Gull Wing	LED Red	500000 Cycles	Illuminated
E-Switch TL3265GQTCLR	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C		Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Round Button	Gull Wing	Green LED	500000 Cycles	Illuminated	12.7 mm
E-Switch TL3265BQNN	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C	7.2 mm	Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Plunger for Cap	Gull Wing	Blue LED	500000 Cycles	Illuminated
E-Switch TL3265GQSCLR	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C	12 mm	Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Round Button	Gull Wing	Green LED	500000 Cycles	Illuminated
E-Switch TL3265TBTNCLR						Snap Fit										Illuminated		Round	TL3265 Series	6.5 mm	4.7 mm	Clear	Tactile
E-Switch TL3265RQSCLR	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C	12 mm	Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Round Button	Gull Wing	LED Red	500000 Cycles	Illuminated
E-Switch TL3265YQSCLR	Off-Mom	0.05 A 12 VDC	85 °C	-40 °C	11.65 mm	Surface Mount	6.8 mm	7 mm	SPST-NO	0.2 mm	Top Actuated	Round Button	Gull Wing	LED Yellow	500000 Cycles	Illuminated								2 VDC
