MA7RAP1202-KIT

Active

Amphenol Sine Systems Corp

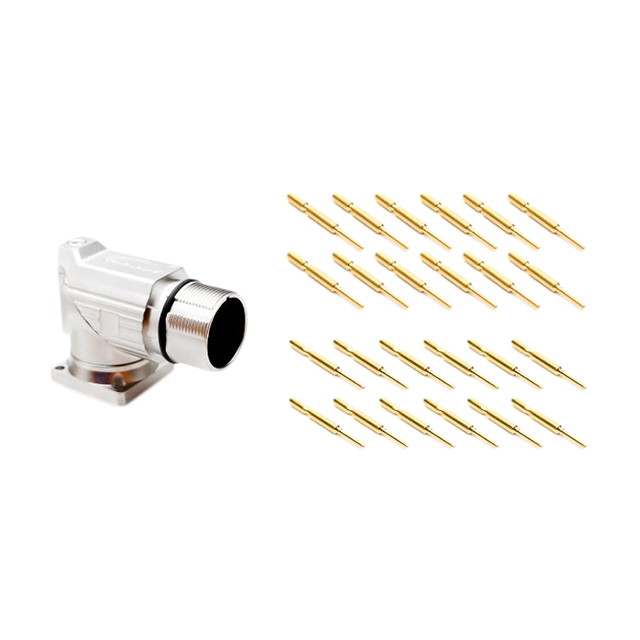

CONN RCPT MALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade +1

MA7RAP1202-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 12POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet MotionGrade +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA7RAP1202-KIT

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A
Features	Backshell, Rotatable
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Termination	Crimp
Voltage Rating	160 V

MA7RAP Series

Part	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Material	Connector Type	Shell Finish	Color	Primary Material	Mounting Feature	Orientation	Current Rating (Amps)	Termination	Contact Finish - Mating	Ingress Protection	Features	Number of Positions	Note	Contact Shape	Insert Material	Contact Type	Material Flammability Rating	Housing Color	Contact Size	Shielding	Type	Number of Positions
Amphenol Sine Systems Corp MA7RAP1702-KIT	Panel Mount Right Angle	125 VAC	-20 C	130 °C	M23-17	Zinc Die Cast	Male Pins Receptacle	Nickel	Silver	Metal	Flange	P	9 A	Crimp	Gold	IP67 - Dust Tight Waterproof	Backshell Rotatable
Amphenol Sine Systems Corp MA7RAP1202-KIT	Panel Mount Right Angle	160 V	-20 C	130 °C	M23-12	Zinc Die Cast	Male Pins Receptacle	Nickel	Silver	Metal	Flange	N	10 A	Crimp	Gold	IP67 - Dust Tight Waterproof	Backshell Rotatable	12
Amphenol Sine Systems Corp MA7RAP1201	Panel Mount Right Angle		-20 C	130 °C	M23-12	Zinc Die Cast	Receptacle Housing	Nickel			Flange	N				IP67 - Dust Tight Waterproof	Backshell Rotatable	12	Contacts Not Included	Circular	Polyamide (PA66) Nylon 6/6	Crimp	UL94 V-0	Silver	1 mm	Shielded	For Female Sockets or Male Pins
Amphenol Sine Systems Corp MA7RAP1702S-KIT	Panel Mount Right Angle	125 VAC	-20 C	130 °C	M23-17	Zinc Die Cast	Receptacle Female Sockets	Nickel	Silver	Metal	Flange	P	9 A	Crimp	Gold	IP67 - Dust Tight Waterproof	Backshell Rotatable
Amphenol Sine Systems Corp MA7RAP1601	Panel Mount Right Angle		-20 C	130 °C	M23-16	Zinc Die Cast	Receptacle Housing	Nickel			Flange	P				IP67 - Dust Tight Waterproof	Backshell Rotatable		Contacts Not Included	Circular	Polyamide (PA66) Nylon 6/6	Crimp	UL94 V-0	Silver	1 mm	Shielded	For Female Sockets or Male Pins	16
Amphenol Sine Systems Corp MA7RAP1602S-KIT	Panel Mount Right Angle	125 VAC	-20 C	130 °C	M23-16	Zinc Die Cast	Receptacle Female Sockets	Nickel	Silver	Metal	Flange	P	9 A	Crimp	Gold	IP67 - Dust Tight Waterproof	Backshell Rotatable											16
Amphenol Sine Systems Corp MA7RAP1601S-KIT	Panel Mount Right Angle	125 VAC	-20 C	130 °C	M23-16	Zinc Die Cast	Receptacle Female Sockets	Nickel	Silver	Metal	Flange	P	9 A	Crimp	Gold	IP67 - Dust Tight Waterproof	Backshell Rotatable											16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.27
		10	$ 53.48
		30	$ 51.42
		50	$ 49.71
		100	$ 46.96

Description

General part information

MA7RAP Series

12 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

MotionGrade

Datasheet

MotionGrade DIN M23/M40

Datasheet
