1052978-1
ActiveTE Connectivity AMP Connectors

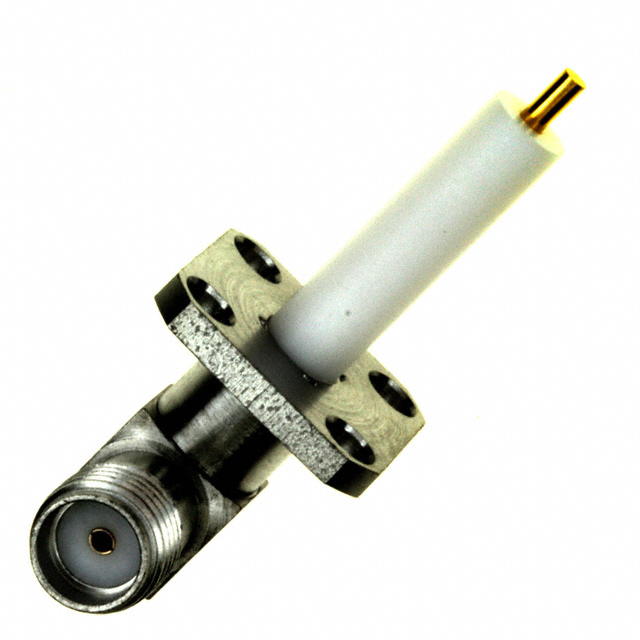

CONN SMA RCPT R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
1052978-1
ActiveTE Connectivity AMP Connectors
CONN SMA RCPT R/A 50 OHM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1052978-1 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Features | Extended Insulation |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 33.29 | |
1052978 Series
CONN SMA RCPT R/A 50 OHM SOLDER
| Part | Housing Color | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Mounting Feature | Mounting Type | Mating Cycles | Frequency - Max [Max] | Center Contact Material | Connector Style | Number of Ports | Body Material | Shield Termination | Features | Connector Type | Impedance | Dielectric Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1052978-1 | Silver | Gold | 125 °C | -65 ░C | 335 V | Flange | Panel Mount, Right Angle | 500 | 12.4 GHz | Beryllium Copper | SMA | 1 | Stainless Steel | Solder | Extended Insulation | Female Socket, Receptacle | 50 Ohms | Polytetrafluoroethylene (PTFE) | Solder |
Description
General part information
1052978 Series
SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount, Right Angle Solder
Documents
Technical documentation and resources
No documents available
