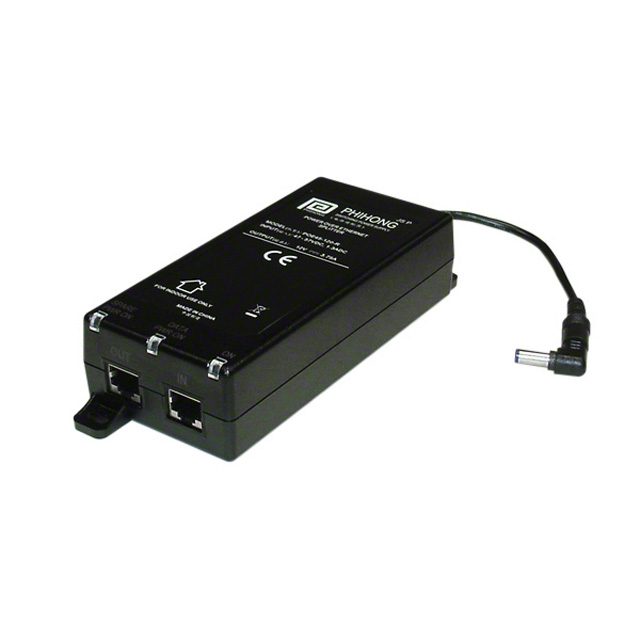

POE45-120
ActivePhihong USA
POE SPLITTER 45W 12V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
POE45-120
ActivePhihong USA
POE SPLITTER 45W 12V DESKTOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE45-120 |
|---|---|
| Approval Agency | CE |
| Current - Output | 3.75 A |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 83 % |
| Features | OCP, OVP |
| Input Connector | RJ45 (Data, Power) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45 (Data), 2.1mm Plug (Power) |
| Power (Watts) - Per Port | 45 W |
| Size / Dimension [x] | 163.8 mm |
| Size / Dimension [x] | 6.45 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Type | Splitter |
| Voltage - Input [Max] | 57 V |
| Voltage - Input [Min] | 47 VDC |
| Voltage - Output | 12 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 67.14 | |
| 10 | $ 61.77 | |||
| 25 | $ 56.67 | |||
| 100 | $ 51.98 | |||
Description
General part information
POE45 Series
12V Power Over Ethernet (POE) 1 Port Splitter 10/100/1000 Mbps Data Rate
