HSM4-8-15-1

Active

Essentra Access Solutions

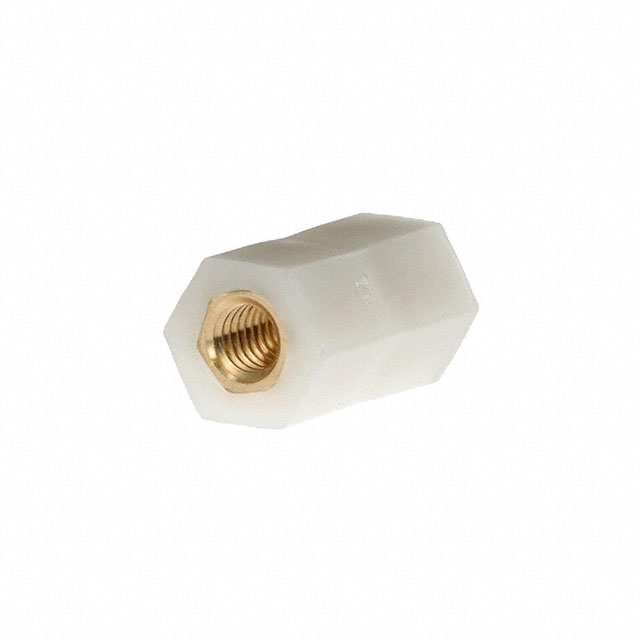

HEX STANDOFF M4 NYLON 15MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSM4-8-15-1

Active

Essentra Access Solutions

HEX STANDOFF M4 NYLON 15MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HSM4-8-15-1

Between Board Height	0.591 in
Between Board Height	15 mm
Color	Natural
Diameter - Outside [diameter]	8 mm
Diameter - Outside [diameter]	0.315 in
Gender	Female
Length - Overall	15 mm
Length - Overall [x]	0.591 in
Material	Brass Insert, Nylon
Screw, Thread Size	M4
Threaded/Unthreaded	Threaded
Type	Hex Standoff

HSM4 Series

Part	Color	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall [x]	Length - Overall [x]	Material	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]	Screw, Thread Size	Type	Between Board Height	Between Board Height	Length - Overall	Length - Overall	Length - Overall
Essentra Access Solutions HSM4-8-16-2	Natural	Female Male	8 mm	0.315 in	0.866 "	22 mm	Brass Insert Nylon	Threaded	16 mm	0.63 in	M4	Hex Standoff
Essentra Access Solutions HSM4-8-30-1	Natural	Female	8 mm	0.315 in	1.181 in	30 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff	1.181 in	30 mm
Essentra Access Solutions HSM4-8-15-1	Natural	Female	8 mm	0.315 in	0.591 in		Brass Insert Nylon	Threaded			M4	Hex Standoff	0.591 in	15 mm	15 mm
Essentra Access Solutions HSM4-8-25-1	Natural	Female	8 mm	0.315 in	0.984 in	25 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff	0.984 in	25 mm
Essentra Access Solutions HSM4-8-24-2	Natural	Female Male	8 mm	0.315 in	1.181 in	30 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff
Essentra Access Solutions HSM4-8-25-3	Natural	Male	8 mm	0.315 in	1.457 in	37 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff	0.984 in	25 mm
Essentra Access Solutions HSM4-8-20-1	Natural	Female	8 mm	0.315 in	0.787 "	20 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff	0.787 in	20 mm
Essentra Access Solutions HSM4-8-32-2	Natural	Female Male	8 mm	0.315 in			Brass Insert Nylon	Threaded			M4	Hex Standoff	1.26 in	32 mm	38 mm	1.496 in
Essentra Access Solutions HSM4-8-50-1	Natural	Female	8 mm	0.315 in			Brass Insert Nylon	Threaded			M4	Hex Standoff	1.969 in	50 mm	1.969 "		50 mm
Essentra Access Solutions HSM4-8-15-2	Natural	Female Male	8 mm	0.315 in	0.827 in	21 mm	Brass Insert Nylon	Threaded			M4	Hex Standoff	0.591 in	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.25
		10	$ 2.04
		25	$ 1.93
		50	$ 1.89
		100	$ 1.80
		300	$ 1.58

Description

General part information

HSM4 Series

Hex Standoff Threaded M4 Nylon, Brass Insert 0.591" (15.00mm) Natural
