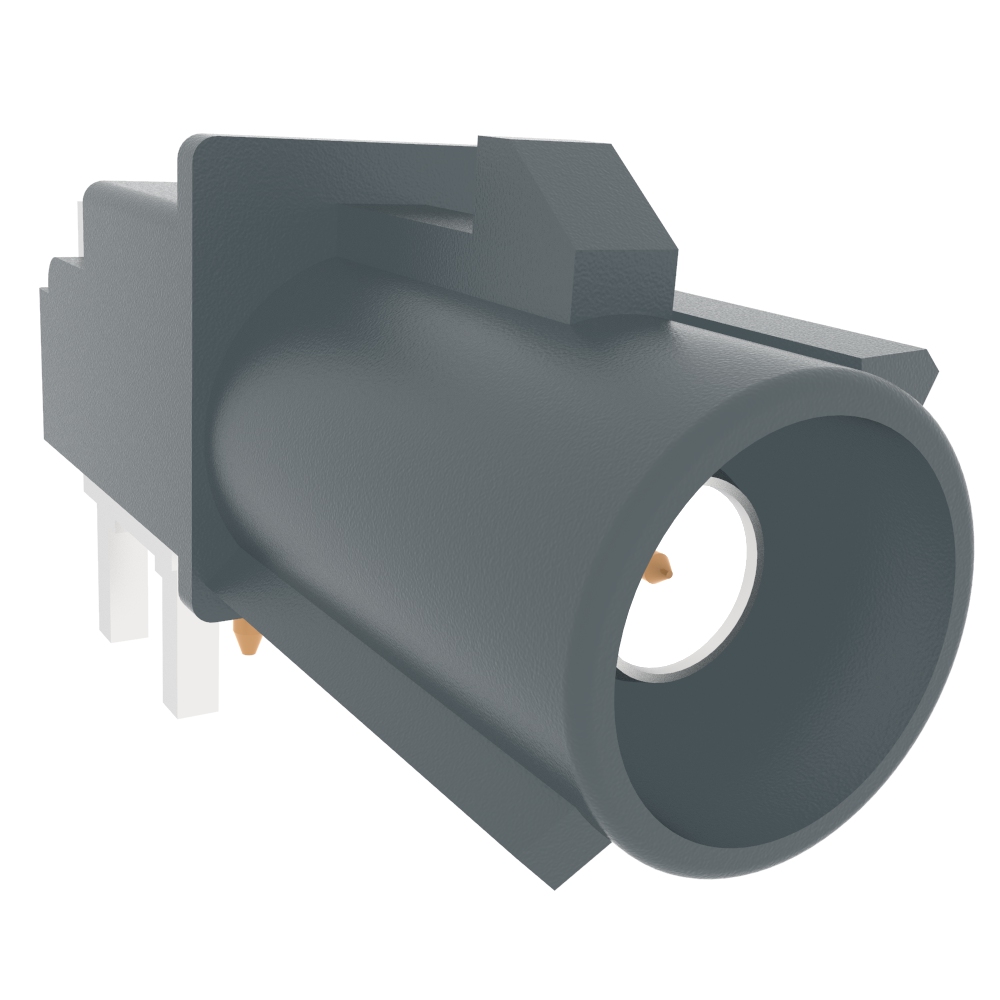

FA1-NGRP-PCB-8

Active

AMPHENOL RF

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NGRP-PCB-8

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code G
Frequency - Max [Max]	6000 MHz
Housing Color	Gray, Blue
Impedance	50 Ohms
Includes	1 Connector, 1 Housing
Insertion Loss	0.3 dB
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

CONN FAKRA PLUG R/A 50 OHM PCB

Part	Center Contact Plating	Body Finish	Features	Center Contact Material	Insertion Loss	Connector Style	Mounting Type	Housing Color	Frequency - Max [Max]	Fastening Type	Dielectric Material	Impedance	Body Material	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Number of Ports	Connector Type	Includes
AMPHENOL RF FA1-NGRP-PCB-8	Gold	Tin	Code G	Brass	0.3 dB	Fakra, SMB	Through Hole, Right Angle	Blue, Gray	6000 MHz	Locking Ramp	Polytetrafluoroethylene (PTFE)	50 Ohms	Zinc Die Cast	Solder	125 °C	-65 ░C	Solder	1	Male Pin, Plug	1 Connector, 1 Housing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
